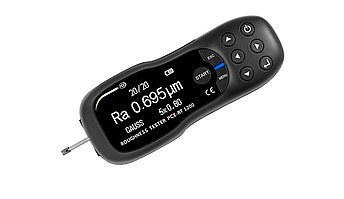

PCE RT 2200BT プロフィロメーター (5 ~ 1000 µm)

Parameter:Ra, Rq, Rsm, Rsk, Rz, Rt, Rp, Rv, Rc, Rmax, Ry(JIS),

Rz(JIS), RP(ASME), Rpm(ASME), Rv(ASME),

R3z, R3zmax, Rz1max, Rmr(c), Rdc, Rmr

Measuring range: Ra, Rq, Rc: 0.005 ... 16 µm

Rsm: 5 ... 1000 µm

Rsk: -1 ... 1

Rz, Rt, Rp, Rv, Rmax, Ry(JIS), Rz(JIS),RP(ASME),

Rpm(ASME), Rv(ASME), R3z, R3zmax, Rz1max,

Rdc: 0.02 ... 200 µm Rmr(c), Rmr: 0 ... 100 %


Probe tip radius: 5 µm

Probe tip material: diamond, 90° angled

Max.recommended force: 4 mN (0.4 gf)

with static measurement

Measuring principle: inductive

Radius of the longitudinal guide rail: 45 mm

Standards: ANSIB46.1/ASMEB46.1 (DIN EN ISO 4287)

Maximum travel distance 15 mm

Cut off wavelength: 0.25 mm / 0.8 mm / 2.5 mm

Scanning speed 0.135 mm/s at cutoff wavelength: 0.25 mm

0.5 mm/s at cutoff wavelength: 0.8 mm

1 mm/s at cut-off wavelength: 2.5 mm

Return speed: 1 mm/s Memory: 20 measurement runs with all parameters Measurement accuracy: <±10 % Repeatability: <6 % Display: OLED, Bluetooth Units: μm / μinch (switchable) Interface: Micro USB Power supply: rechargeable Li-ion battery memory: 20 measurement runs with all parametersMeasurement accuracy: <%C2%B110 %Repeatability: <6 %Display: OLED, BluetoothUnits: %CE%BCm / %CE%BCinch (switchable)Interface: Micro USBPower supply: rechargeable Li-ion battery


Memory: 20 measurement runs with all parameters

Measurement accuracy: <±10 %

Repeatability: <6 %

Display: OLED, Bluetooth

Units: μm / μinch (switchable)

Interface: Micro USB

Power supply: rechargeable Li-ion battery


Standard accessories
1 x Profilometer PCE-RT 2200BT
1 x Microprobe
1 x Protective cap for buttons
1 x Positioning device
1 x Calibration plate
1 x Roughness standard
1 x USB cable
1 x Charging adapter
1 x Transport case
1 x User manual
