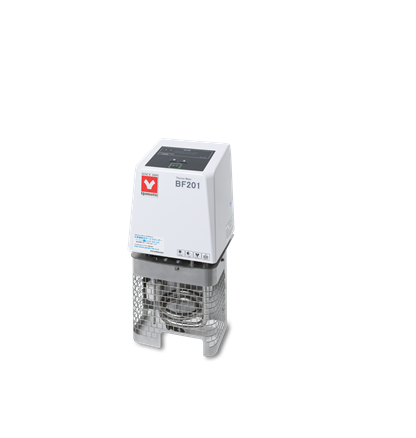

Yamato BF201 Immersion Constant Temperature Device (RT+5~80°C)

Temp. Setting Range: -20.0 ~ 90 °C

Operating Temp. Range: Room Temp. +5 ~ 80 °C

Temp. Control Accuracy: ±0.05/0.1 °C (at 37/80 °C)

Stirrer: Propeller Stirring

Heater: Stainless Pipe Heater 1.0KW

Temp. Control System: PID Control by Micro Computer

Heater Circuit Control: Triac Zero-cross Type

Sensor: Platinum resistance temperature detector (Pt100Ω)

Clamp Available Thickness: Max. 35mm

Accessories: Testing Bath Model BY100 (Polypropylene)

External dimensions(W×D×H mm): 140×138×312mm

Power Source: AC220V 5A Single-phase with step down transformer

Weight: 4kg
