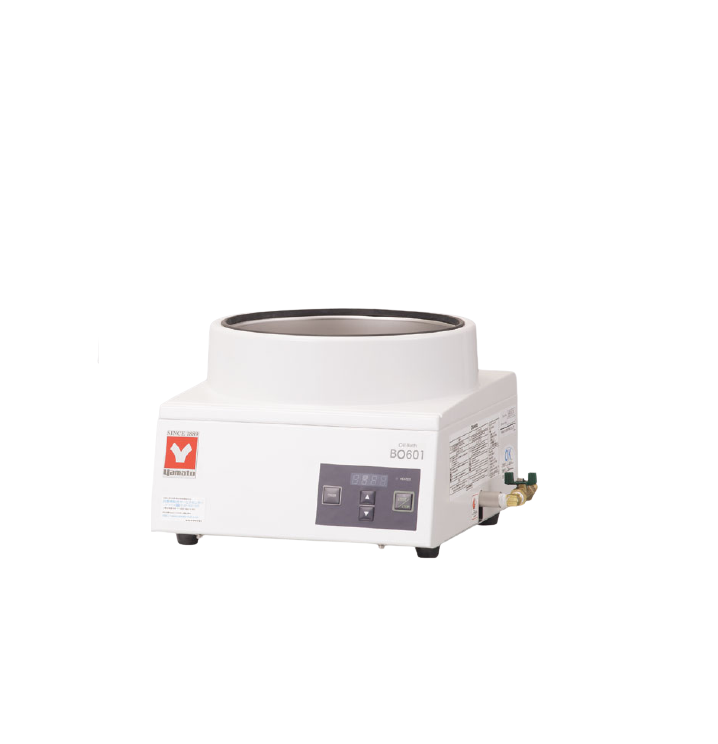

Yamato BO601 Economical Oil Bath (7L, 1kW)

Operating temp. range: Room temp. +5 to 180°C

Temp. control accuracy: ±0.3℃ (at 100°C)

Temp. control system: PlD control by microprocessor

Temp. setting/display method: Digital setting by ▲/▼ keys

Operation function: Fixed temperature, Quick autostop, Auto stop, Auto start

Heater: SUS316 pipeheater 1kW

Sensor: K thermocouple

Safety device: Bath protection cover

Safety device: Self-diagnostic function (Automatic overheat prevention, Temperature sensor error, Triac short circuit, Heater disconnection, Main relay failure), Circuit protector, Thermal fuse, Micro switch to detect heating without oil

Accessories: Shelf

Internal dimensions(φ×H mm): φ250×150mm

External dimensions(W×D×H mm): 310×360×230mm

Remarks(dimensions): TTank maximum inner diameter 250×D150mm approx. 7L

Power Source: AC220V 7A Single phase

Weight: 8kg
