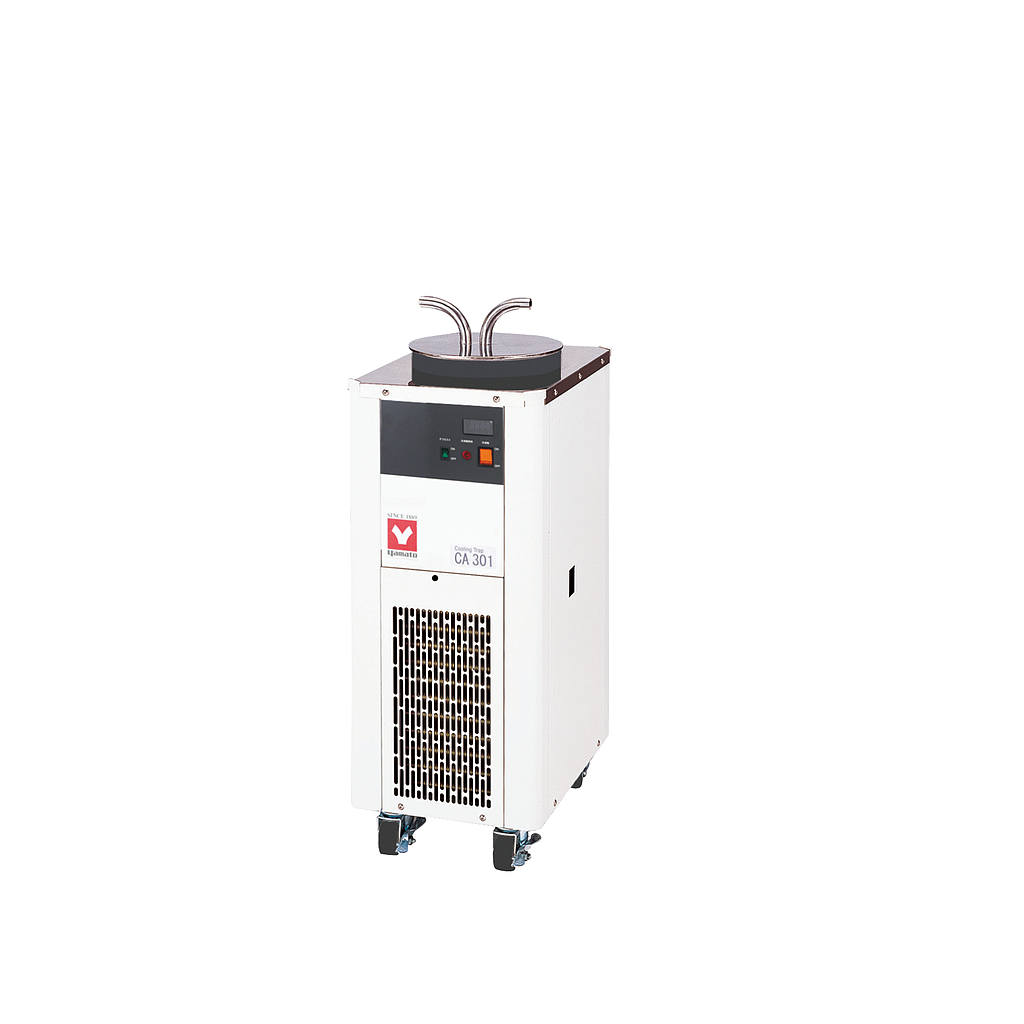

Yamato CA301 冷却トラップ (4L, 400W)

Method: Direct trap or Glass trap (optional)

Dehumidifying capacity: Max. 0.9kg(Water type liquid)

Max. low temperature: -45℃

Refrigerator: Air cooling, 400W

Refrigerant: R404A

Cooling coil: ID ø90mm SUS304

Lid: SUS304, with nozzle (OD ø17.6mm)

Bath shape/material: Cylindrical/SUS304

Ambient temp. range: 5 to 35℃

Temperature display: 7 segment LED

Temperature sensor: Platinum resistance temperature detector Pt100Ω

Defrosting mechanism: N/A

Safety device: Electric leakage breaker with over current protection, Refrigeration overload relay

Sink dimensions: I.D.153×H235mm

External dimensions(W×D×H mm): 345×475×726mm

Remarks(dimensions): Internal capacity : Approx. 4L (Liquid 3L)

Power Source: AC115V/AC220V Single phase with step-down transformer

Weight: 47kg
