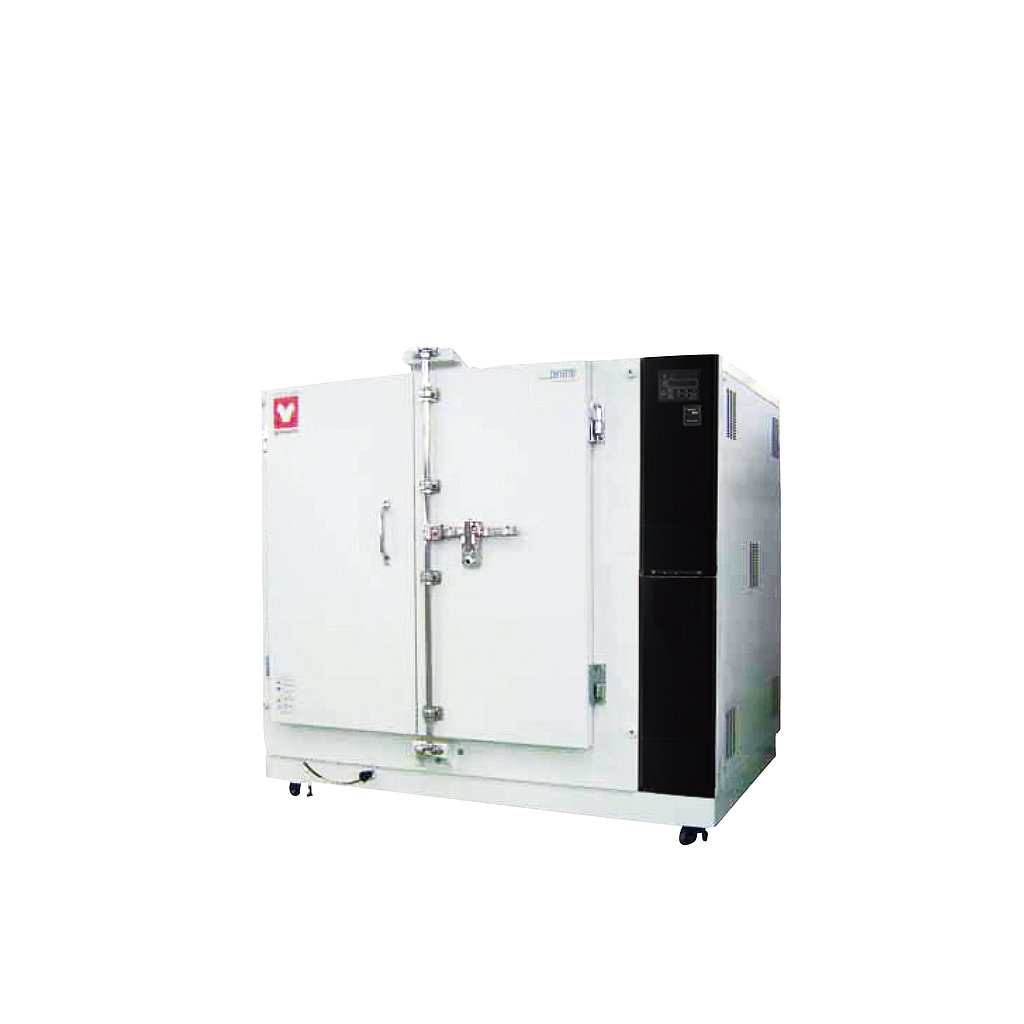

Yamato DF832 精密恒温器(ファインオーブン)(512L, 4.5kW)

System: Forced air circulation and ventilation

Operating temp. range: Room temp. +15°C~200°C

Temperature fluctuation: 3°C (at 200°C)

Heater: Stainless steel pipe heater with fins 4.5kW

Sensor: K-Thermocouple (Double sensor)

Fan motor: Axial flow fan (Capacitor motor: 20W), Two motors used

Cable port: I.D. ø30mm (rear)

Heat insulator: Glass wool

Internal dimensions(W×D×H mm): 800×800×800mm

External dimensions(W×D×H mm): 1500×1015×1330mm

Remarks(dimensions): 512L

Power Source (50/60 Hz): 3 phase AC220V 19A

Weight: 350kg

Shelf / bracket: Stainless punching metal shelf (loading up to 15kg/shelf) 3pcs. / 3 sets
