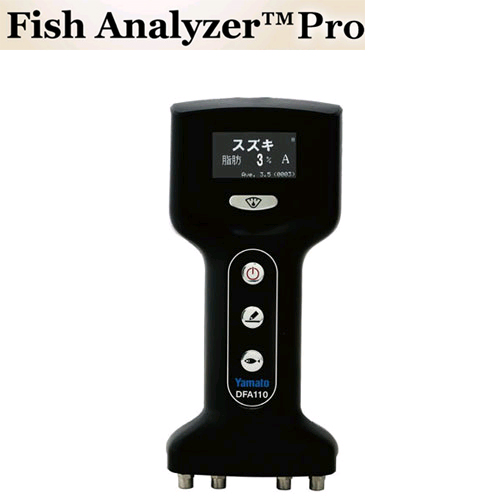

Yamato DFA 110 Fish Analyzer 魚用品質状態判別装置

Measuring method: Bioelectrical impedance method (4 sensor electrode type)

Measuring frequency: 5, 20, 50 and 100kHz

Measuring time: Approx. 4 seconds

Display method Organic EL display (white), dot matrix system

Fish species 20 species in total: Horse mackerel 1, Horse mackerel 2, Mackerel 1, Mackerel 2, Sardine, Saury,

Yellowtail, Bluefin tuna (back, belly and tail), Sea bream, Alfonsino,

Bonito 1, Bonito 2, Salmon, Rainbow trout, Spanish mackerel, Butterfish,

Sea bass, Sailfin sandfish, Grouper, Sea eel


Fat percentage: 1 to 70%(unit: 1%)

Impedance: 30Ω to 999Ω(unit: 1Ω)in impedance mode

Freshness level: A', A, B, C, and D, 5 level judgment

Other functions: Frozen judgment, impedance mode, auto power off, auto display turn off,

measuring result memory, averaging display function, Brightness level


Material Housing: ABS resin

Electrode: SUS304

Accessories Sensing electrode attachment for small fish

Options Bluetooth wireless communication

Power 2 x AA size (UM-3) dry battery,

Power consumption 3VDC, More than 15,000 weighments with alkaline cell batteries

Protection IP65

Operating environment: -10°C to +40°C, 30% R.H. to 85% R.H.(no condensation)

Remarks Any fish once frozen cannot be measured and "Thawed" is displayed on the device.
