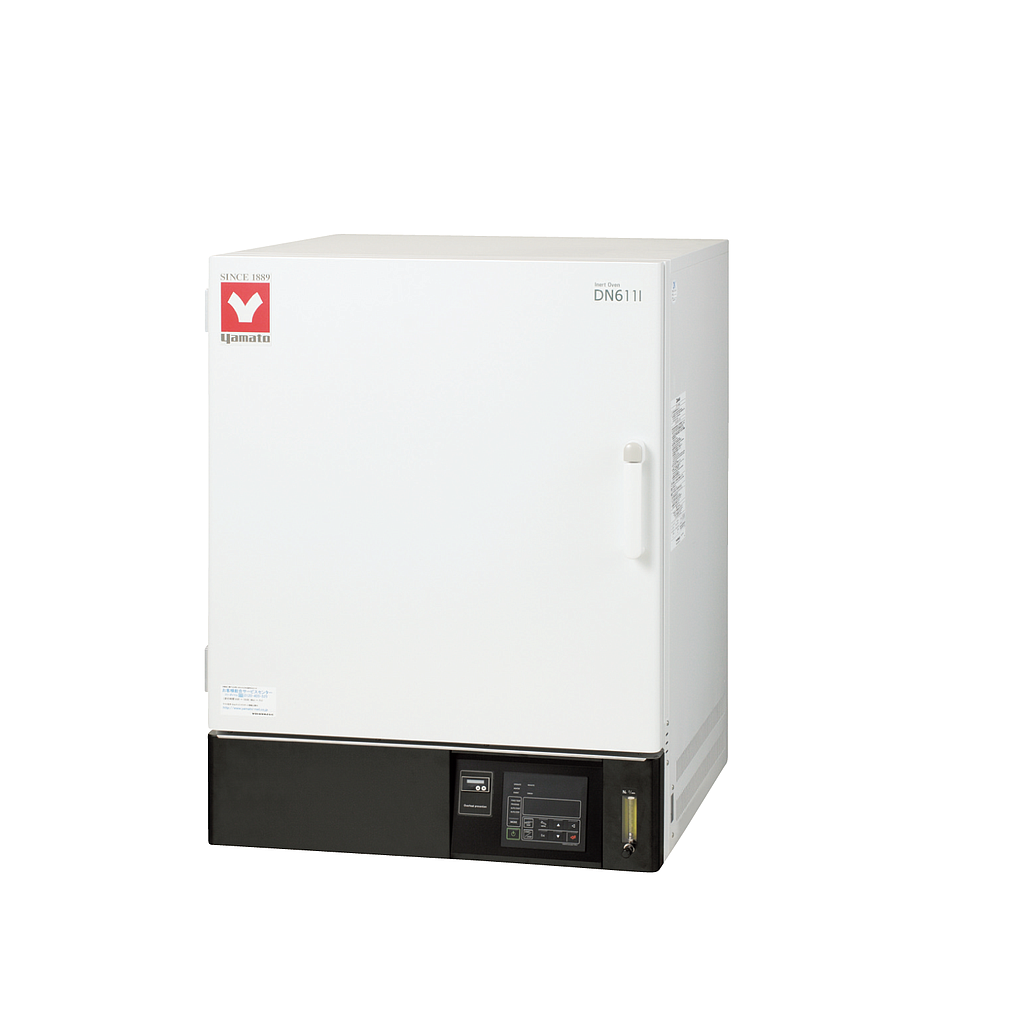

Yamato DN611I イナートオーブン (223L, 4.0kW)

Method: Forced Convection

Operating temp. range: Room Temp. +15~360°C

Temp. adjustment accuracy: ±0.2℃(at 360℃)

Max. temp. reaching time: Approx. 60 min.

Nitrogen substitution time required: Approx. 70 min. (Ordinary temp with Oxygen concentration of 2%)

Interior: Stainless steel plate

Exterior: Cold rolled steel plate with baked melamine resin coating

Heat insulator: Glass wool + Ceramic fiber

Heater: Stainless pipe heater 4.0kW

Sensor: K thermocouple for temperature control and independent overload prevention device

Temp. controller: PID control by microcomputer

TShelf plate / support: Stainless wire, 2 pcs. / 4 pcs

Internal dimensions(W×D×H mm): 620×600×600mm

External dimensions(W×D×H mm): 790×845×1065mm

Remarks(dimensions): 223L

Power Source: AC220V 20A Single-phase

Weight: 130kg
