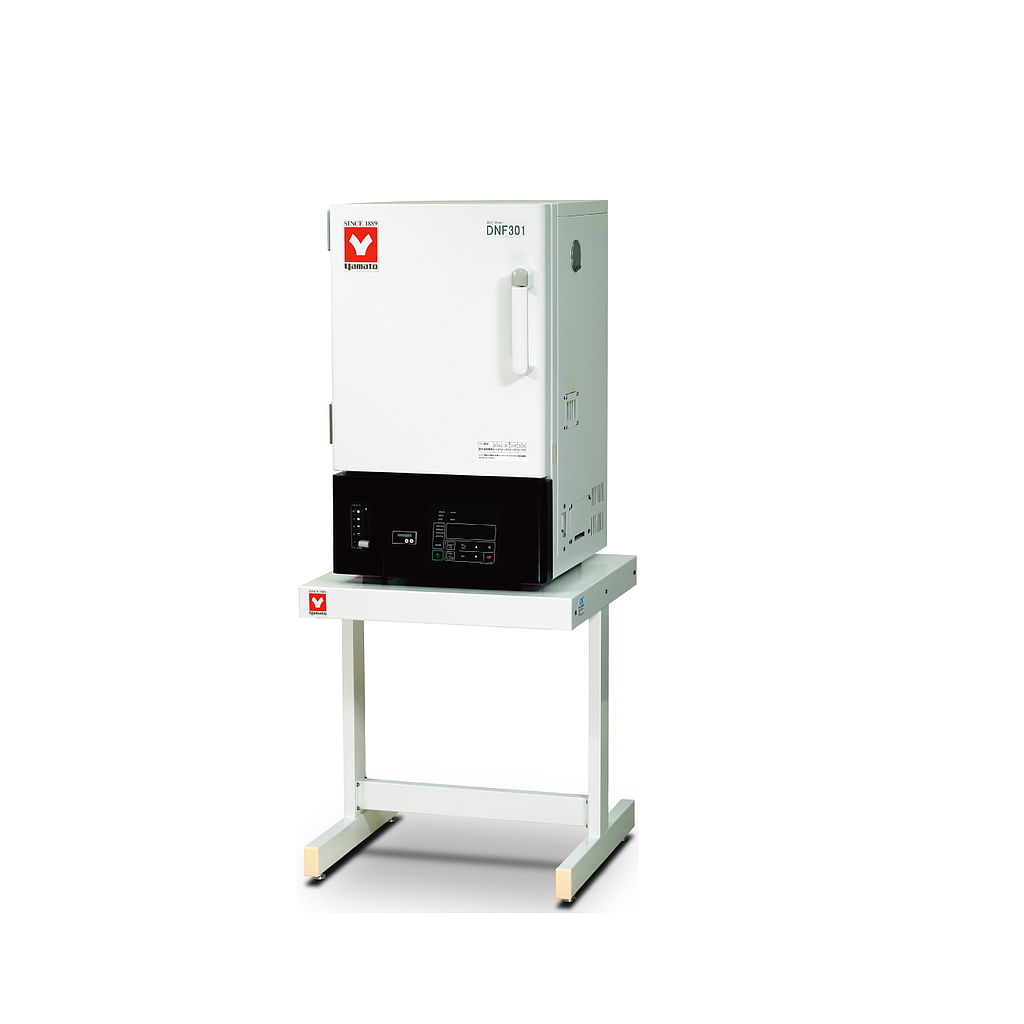

Yamato DNF301 強制対流オーブン (27L, 0.8 kW)

Circulation method: 2 in 1 type: Forced and Natural convection, with manual exhaust damper

Forced convection (Wind velocity setting:1-10)

- Operating temperature range: RT +15 to 260°C

- Temp. control accuracy: ±0.3°C (at 260°C)

- Temp. distribution accuracy: ±2.5°C (at 260°C)

- Max. temp. reaching time: Approx. 70 min

Natural convection (Wind velocity setting:0)

- Operating temperature range: RT +25 to 120°C

- Temp. control accuracy: ±0.5°C (at 120°C)

- Temp. distribution accuracy: ±5°C (at 120°C)

- Max. temp. reaching time: Approx. 20 min

Interior/Exterior material: Stainless steel /Electro-galvanized steel sheet with epoxy and melamine resin baking finish

Heat insulating material: Glass wool

Heater: 0.8 kW

Cable port: 33mm I.D. (Right)×1pc.

Air in-take port: 33mm I.D. (Right)×1pc.

Exhaust port: 50mm I.D. (Back)×1pc

Internal dimensions (W×D×H): 300×300×300 mm

External dimensions (W×D×H): 430×495×740 mm

Internal capacity: 27L

Power supply: Single phase: AC115V/AC220V

Weight: 50 kg

Accessories:

- Shelf plate: Stainless steel, 2 pcs

- Shelf support: 4 pcs.
