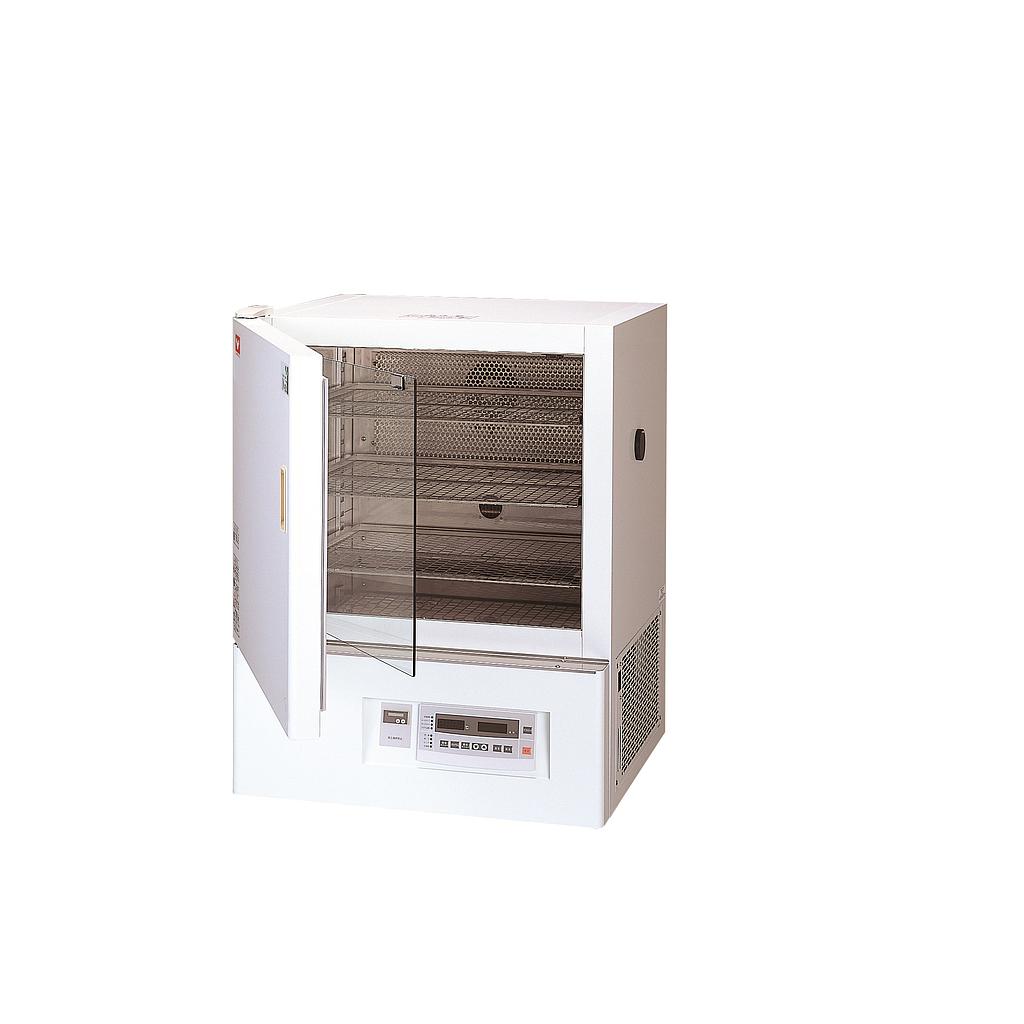

Yamato IN604W 低温恒温器 (143L, 550W)

System: Forced air convection

Operating Temperature Range: -10~50℃

Temperature Adjustment Accuracy: ±0.3℃(when refrigerator is in continuous operation), ±1.0℃(when refrigerator is in cycle operation)

Temperature Distribution Accuracy: ±1.0℃(at 37℃ refrigerator is in continuous operation)

Max. Temperature Reaching Time: 20~50℃ approx. 20min.

Lowest Temperature Reaching Time: 20~-10℃ approx. 55min.

Heat Insulation Material: Stylene foam (non-freon)

Observation window: W516 x H416 mm

Refrigerator Medium: R134a

Defrosting Mechanism: Manual ON/Auto OFF, Timer operation, Cycle operation

Blower: Axial flow fan

Heater: Iron-chrome wire heater 550W

Sensor: Double sensor:Pt. resistance temperature detector, Pt100Ω(Temperature controller), K-thermocouple(Overheat prevention device)

Cable Port: 50mm ID (Right side from the front)

Temperature Control: PID control

Shelf/Support: Stainless steel punching metal, 3 shelves/6 supports

Door Key: 2 keys

Internal dimensions(W×D×H mm): 600×477×500mm

External dimensions(W×D×H mm): 710×645×913mm

Remarks(dimensions): 143L

Power Source: AC115V/220V Single phase

Weight: 89kg
