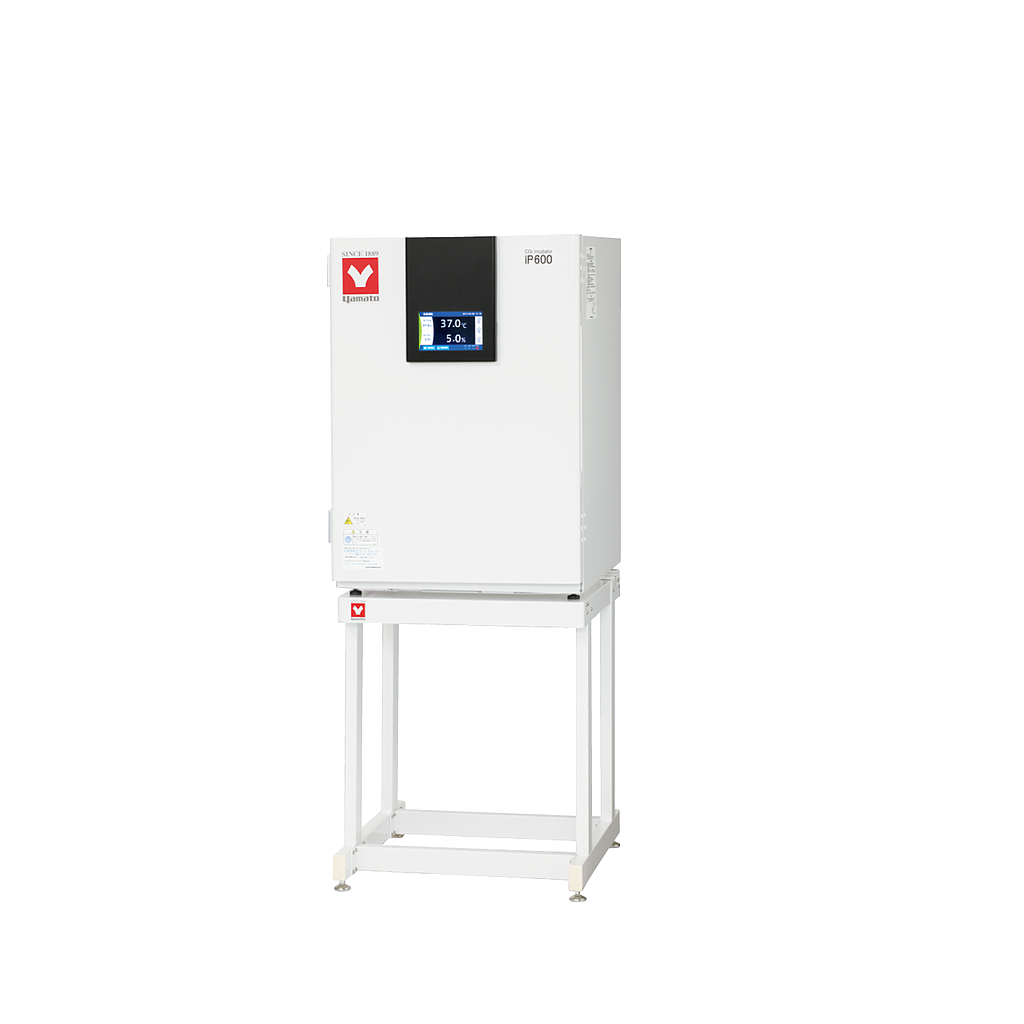

Yamato IP600 CO2インキュベータ (167L)

Minimum order 4 units

System: Air jacket with drying sterilization

Operating Temp. Range: (Room Temp.＋5℃) ～50℃

Temp. Control Accuracy: ±0.1℃（at 37℃）

Temp. Distribution Accuracy: ±0.2℃（at37℃）

Humidity in Operation: More than 95％RH, ±5.0％RH

CO2 Concentration Range: 0（Air）～20％

CO2 Concentration Control Accuracy: ±0.2％ (at 37℃, at setting 5％）

Dry-Sterilization Operation: 160℃, 2 hrs.　

Interior: Stainless Steel (Anti-bacterial)

Temperature Sensor: Pt100Ω

CO2 Sensor: Infrared Type (New single light source, double wavelength type）

Cable Port: Φ32mm on the back

Controller: 7 inch color touch panel with trilingual language support (English, Chinese and Japanese)

Internal dimensions（W×D×H mm）: 485×540×640mm

External dimensions（W×D×H mm）: 600×664×880mm

Remarks(dimensions): 167 L, External depth including the projection: 765 mm

Power Source: AC115/220V Single phase with step-down transformer

Weight: 110kg
