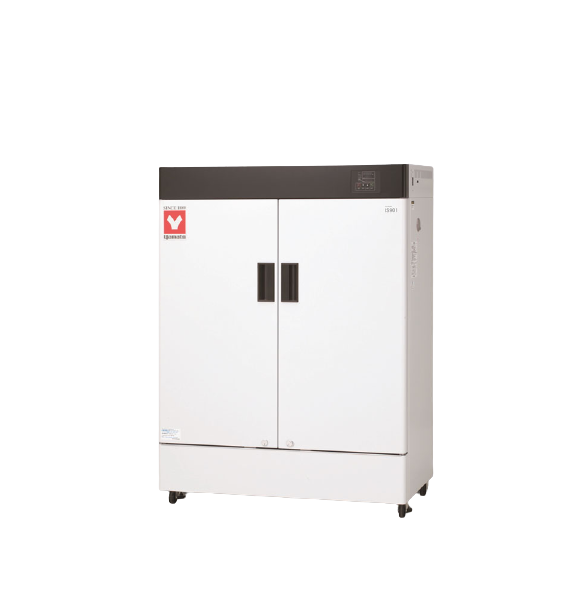

Yamato IS901 恒温器（インキュベータ）(567L, 1.2kW)

Type: Air Jacket Type, Natural Convection

Temperature Range: Room Temp. +5～80℃

Temp. Adjustment Accuracy: JTM K05 ±0.2℃ at 37℃

Temp. Distribution Accuracy: JTM K05 ±1.0℃ at 37℃

Time required to reach 60℃: Approx. 90 min.

Interior: Stainless Steel

Exterior: Cold rolled steel plate with melamine resin baking finish

Heater: Iron-chrome Wire Heater, 1.2kW

Exhaust Port: 30mm ID x 2 (side)

Inner Glass Window: Reinforced Glass 5mm t

Temp. Controller: PID control by microprocessor

Temp. Sensor: Pt100/K-Thermcouple

Shelf/ Support: 10 pcs./ 20 pcs

Internal dimensions（W×D×H mm）: 1,070×530×1,000

External dimensions（W×D×H mm）: 1,180×655×1,619

Remarks(dimensions): 567L

Power Source: AC115V/AC220V 50/60Hz, Single phase

Weight: 166 kg
