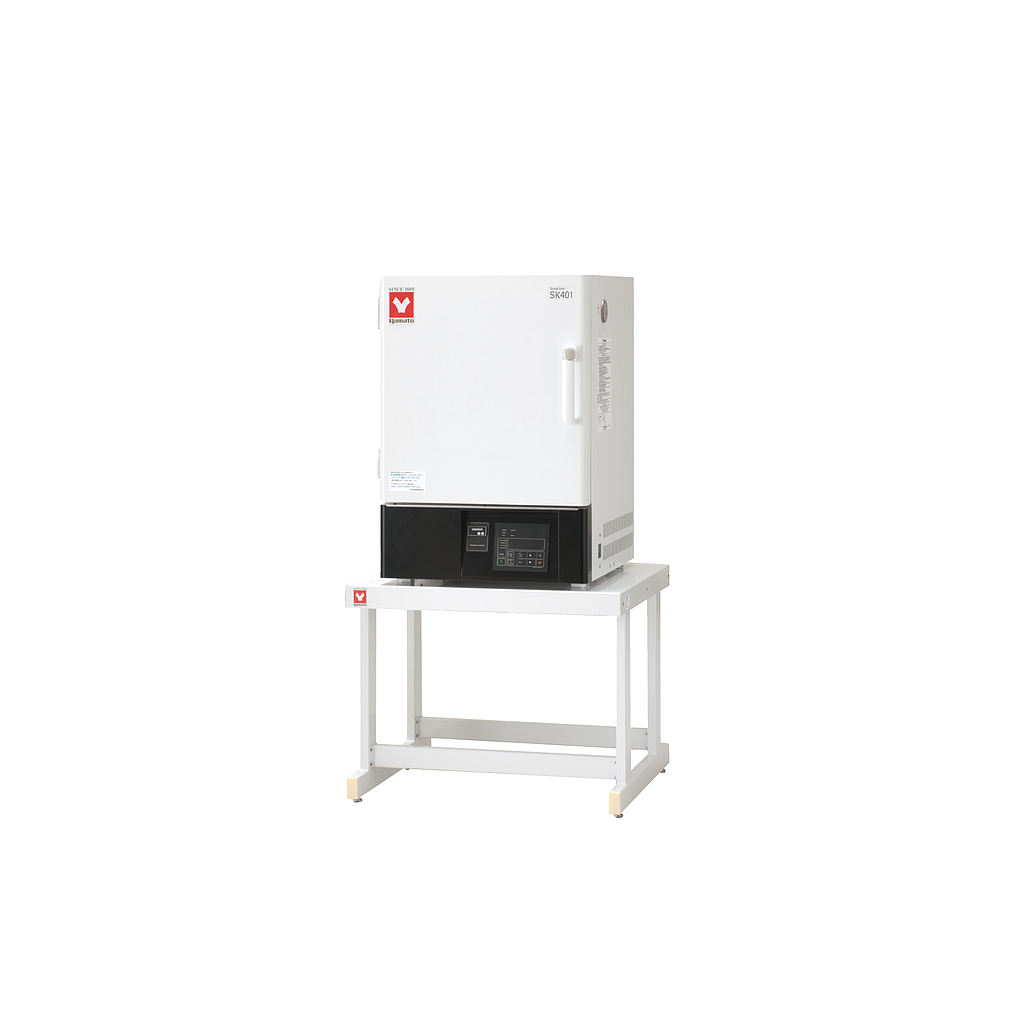

Yamato SK401 ラボ用乾熱滅菌器 (99L, 1.2kW)

Circulation method: Natural convection (for laboratory use only)

Operating temp. range: Room temp. +5~260°C

Temp. adjustment accuracy: JTM K05 ±1°C (at 260°C)

Max. temp. reaching time: Approx. 60min.

Interior/Exterior: Stainless steel plate/chrome-free electrogalvanized steel sheet with chemical proofing coating

Insulation Material: Glass wool

Heater: SUS 1.2kW

Sensor: K type Thermocouple

Cable port: I.D. 33mm (right side)

Exhaust port: I.D. 33mm×2 (on top)

Temp. control: PID control

Shelf plate/bracket: 2pcs./4pcs.

Optional: Stand/ONS60 ,Stacking support/ODK82, Shelf plate (1 plate with 2 brackets) etc.

Internal dimensions（W×D×H mm）: 450×490×450mm

External dimensions（W×D×H mm）: 560×600×820mm

Remarks(dimensions): Internal capacity 99L

Power Source: AC115V/220V

Weight:  50kg
