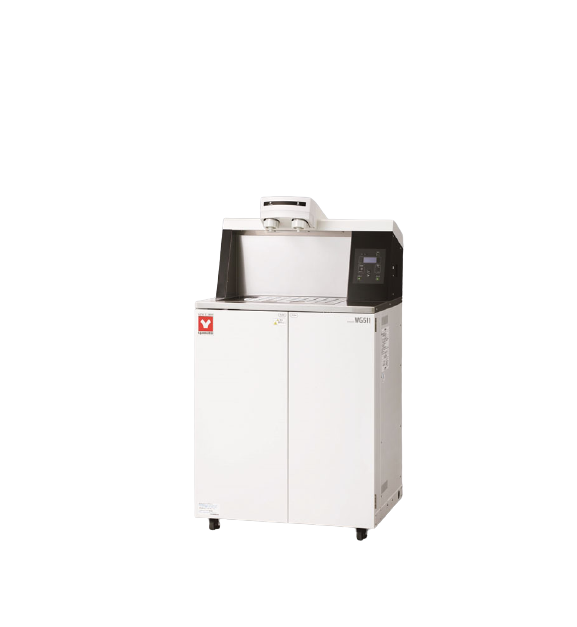

Yamato WG511 純水製造装置オートスチル (5L/h)

Water purifying method: Ion exchange→Distillation→Filtration

Water discharging: Left/right selection for connecting hose

Collection of distilled water: Approx. 1.0 to 2.0 L/min. (50Hz) 1.5 to 2.5 L/min. (60Hz)

Distilled water production: Approx. 5 L/hr.

Distilled water delivery rate: 1.0 - 2.0 L/min (50Hz) 1.5 - 205 L/min (60Hz) *it depends on the amount of water in the tank

Deionized water delivery rate: Approx. 1.4 L/min

Range of production: 0.1 - 85L quantitative water/Continuous production

Condenser: Hard glass

Heater: Ceramic heater, 2 pcs.

Pre-treatment cartridge: 0.1μm diameter hollow fiber + Activated carbon

Ion-exchange resin cartridge: SPC-10 (approx. 10L of resin)

Distilled/deionized water filter: 0.1μm×2 membrane filter

Leakage indication: Forced shutdown of solenoid valve by water leakage sensor

Distilled water tank capacity: 100L polyethylene tank

Product water intake tray: Standard

Raw water pressure range: 0.10MPa to 0.50MPa

Accessories: Water supply hose -- 2m×1 pc. (with connecting unit), Pre-treatment cartridge, Ion-exchange resin cartridge, membrain filter 2pcs, Hose clamp 2pcs, elbow fittings, Drain hose assy 3m, Connecting hose assy

External dimensions(W×D×H mm): 800×685×1510mm

Power Source: AC220V 20A Single-phase with step-down transformer

Weight: 130kg
