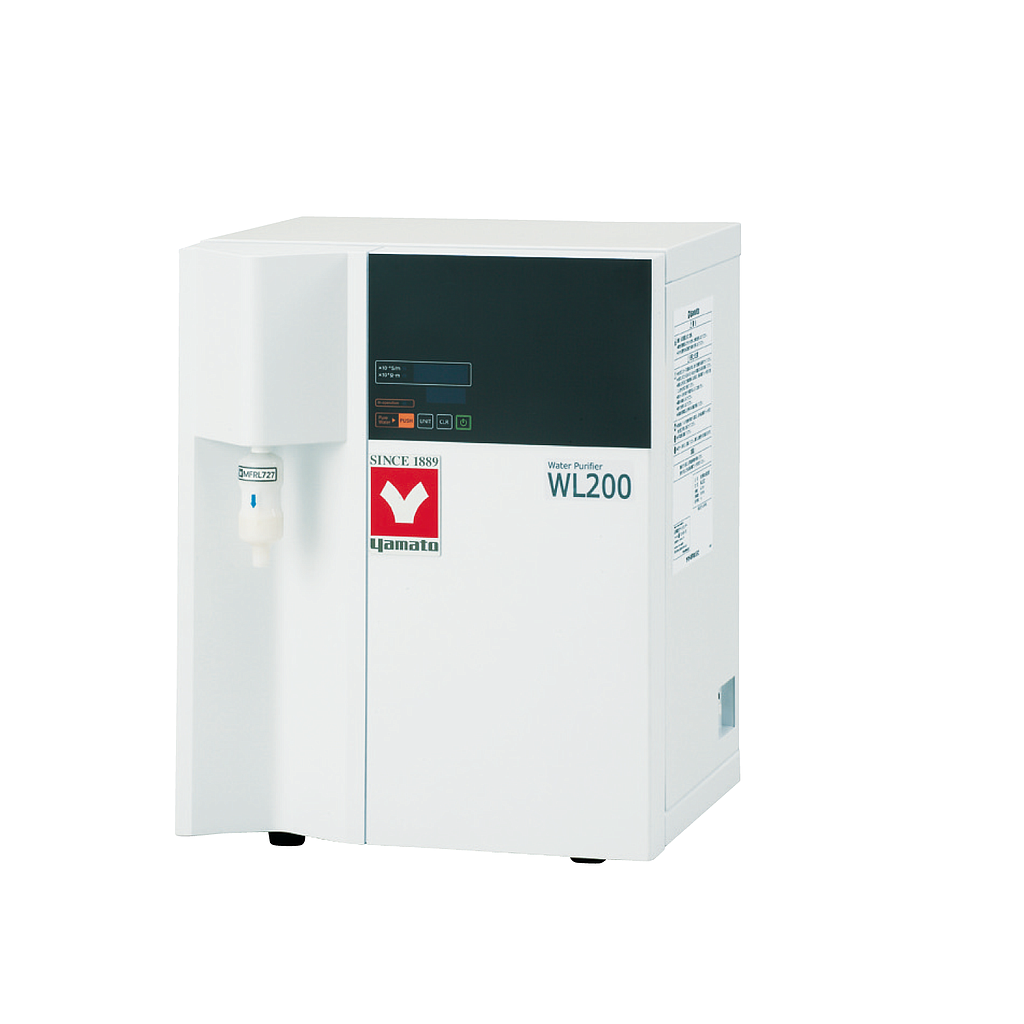

Yamato WL200 純水製造装置ピュアライン (1L/min)

Water purifying method: Ion-exchange (Controlled by key)

Deionized water production: Approx. 1L/min. (Continuously produced)

Ion-exchange resin cartridge: 2L ion-exchange resin with activated carbon (CPC-P) x 1pc.

Final filtration: 0.1μm (Membrane filter)

Pure water tank: N/A

Water leakage detection: Solenoid valve forced shutdown of water supply by detecting water leakage

Raw water pressure range: 0.5 to 5x100kPa (0.5 to 5 kgf/cm2)

Sampling port: 250mm above floor RC1/4 (Membrane filter connection)

Safety device: Circuit breaker, Water leakage indicator, Pressure reducing valve, Water quality abnormal alarm

Accessories: Raw water supply hose, Power cord (2m), Ion-exchange resin CPC-P, Seal tape

External dimensions(W×D×H mm): 350×350×450mm

Power Source: AC100 to 240V 0.2A Single-phase

Weight: 14kg
