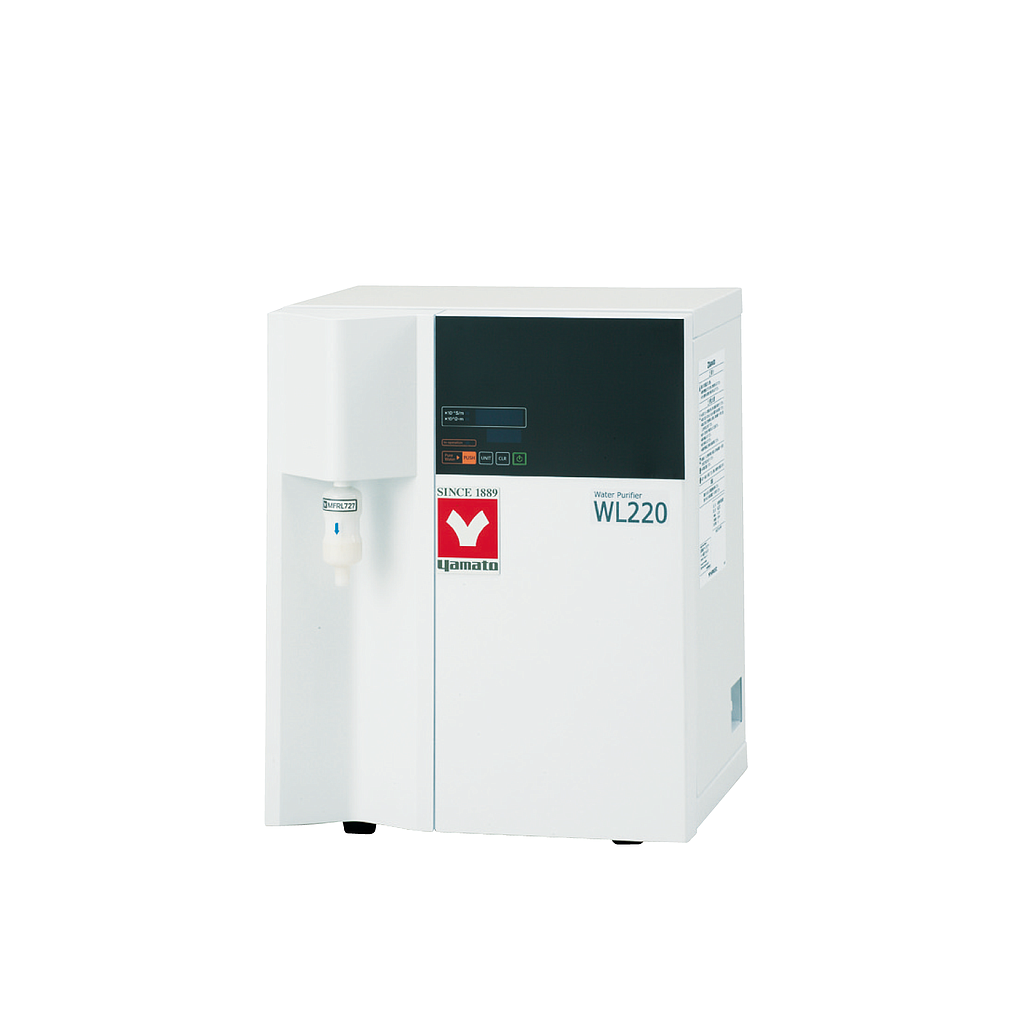

Yamato WL220T 純水製造装置ピュアライン (1L/min)

Water purifying method: Ion-exchange (Manual)

Deionized water production: Approx. 1L/min. (by natural fall)

Ion-exchange resin cartridge: 2L ion-exchange resin with activated carbon (CPC-P) x 1pc.; 2L ion-exchange resin (CPC-E) x 1pc.

Final filtration: --

Pure water tank: 3L polyethylene tank

Water leakage detection: Solenoid valve forced shutdown of water supply by detecting water leakage

Raw water pressure range: 0.5 to 5x100kPa (0.5 to 5 kgf/cm2)

Sampling port: 250mm above floor RC1/4 (Membrane filter connection)

Safety device: ø9 nipple (Hose connection)

Accessories: Raw water supply hose, Power cord (2m), Membrane filter, Seal tape

External dimensions（W×D×H mm）: 350×350×450mm

Power Source: AC100 to 240V 0.2A Single-phase

Weight: 17kg
