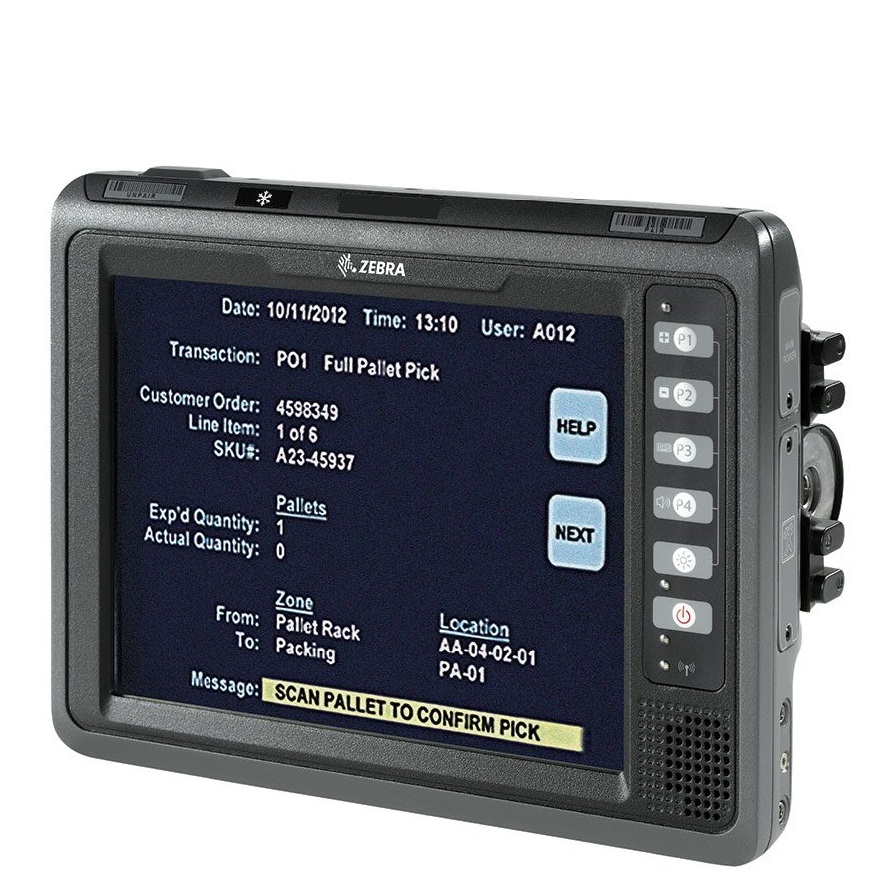

Zebra VC70N0 ハンディターミナル (WEC 7)

Dimensions: 11.5in. Lx8.9in. Wx2.4in. D

                     291mm Lx225.4mm Wx60mm D

Weight: 9.4lbs./4.3kg

Keyboard options: QWERT Y or AZERT Y, 65-key with function keys F1-F24;

                              side-mounted 21-key Numeric/Functional keypad

Integrated dualfunction battery: Provides up to 30 minutes session persistence during forklift battery swap and up to 72 hours RAM backup

Display type: 10.4 in. color XGA (1024 x 768) LCD;

                      600 NIT LED backlit;

                      Resistive touchscreen;

                      Auto brightness control with ambient light sensor or manual control;

                      Motion sensing blanking

Display defroster (optional): Touch screen heater evaporates external condensation when moving out and in freezers

Interface ports: Standard sealed and secured connectors:

                         1 RS-232 serial port with 5V/1.5A

                         1 RS-232 serial port with 5V/0.5A

                         2 USB port (host, 5V/1.5A)

                         1 USB OT G (service)

                         CAN-Bus (J1939)

                         10/100Mbps Ethernet

Audio: Built-in front-mounted 2W speaker;

           external 13 watt speaker and external Push-To-Talk microphone that is ready for voice communication and voice-assisted applications

CPU: TI OM AP 4430, Dual Core @1GHz

Operating system: Windows Embedded Compact 7 (WEC 7)

Memory: 1GB RAM; 2GB Flash

Expansion slot: Micro SD up to 32GB SDH C Class 10;
