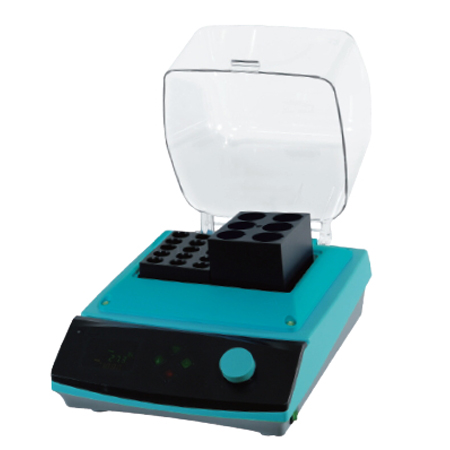

Bể ổn nhiệt Jeiotech CCB-350S (5~130℃)

  • Cam kết chất lượng
  • Bảo hành chính hãng
  • Giao hàng tận nơi
  • Đơn giản hóa giao dịch

Model: CCB-350S
Hãng sản xuất: Jeiotech
Xuất xứ: Hàn Quốc
Bảo hành: 12 tháng

Hệ thống điều khiển:  điều khiển phản hồi PID
Màn hình: VFD
Nhiệt độ:  5~130℃/ 0.06 ℃
Kích thước bên trong: 154×99×37mm
Kích thước máy: 276×334×120mm
Cân nặng: 5.1kg
Điện áp:120V, 230V, 50 / 60Hz, 3.5A ~6.7A
Phụ kiện: HDSD, dây nguồn.

Blocks



Operating Features

  • Precision accuracy of ±0.1℃ is ensured by its PID controller from ambient + 5℃ to 130℃.
  • Its built-in temperature limit setting feature (with max. 0.2℃ overshooting)
    allows you to perform highly temperaturesensitive reactions such as isothermal amplifications.
  • Automatic power cutoff.
    - If the temperature of the main body exceeds 150℃.
    - If the internal circuit is overheated.
  • Two types of timer modes:
    - Timer 1: Timer activation starts only after reaching the set temperature.
    - Timer 2: Timer activation starts right after the timer setting.

Constructional Features

  • Its polypropylene main body is highly chemical-resistant and easy-to-clean.
  • Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion- resistant anodized aluminum blocks.
  • Bright high-quality VFD display, responsive touch buttons, and a big dial knob offer maximum ease-of-use.
  • Transparent lid allows easy sample monitoring and even temperature distribution.
  • Blocks can be easily interchanged by using the included block lifter.
  • Interchangeable tube blocks (sold separately) accept various tube or vial sizes.
  • Select proper models and heating blocks depending on your sample tube or vial sizes. (refer to accessories)
Model CHB-350S CHB-350T
Control System Feedback control PID
Display VFD(0.1℃ resolution)
Temperature Range (℃ / ℉) Ambient +5 to 130
Fluctuation at 80℃ (±℃ / ℉) 0.1 / 0.18
Variation at 80℃ (±℃ / ℉) 0.2 / 0.36
Dimension (W×D×H) Internal (mm / inch) 154×99×37 / 6.1×3.9×1.5
Overall (mm / inch) 276×334×120 / 10.9×13.1×4.7 276×334×250 / 10.9×13.1×9.8
Net Weight (kg / lbs) 5.1 / 11.2 5.5 / 12.1
Electrical Requirements (230V, 50 / 60Hz) 3.5A
Cat. No. AAHJ1015K AAHJ1115K
Electrical Requirements (120V, 60Hz) 6.7A
Cat. No. AAHJ1013U AAHJ1113U

※ Permissible environmental conditions: temperature (2-60℃) and relative humidity (up to 80%)
