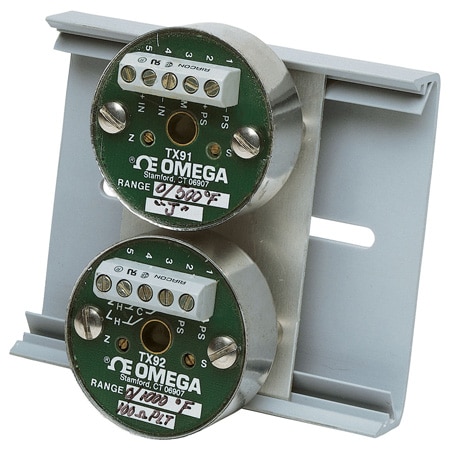

Bộ truyền nhiệt độ gắn đầu | Được phê duyệt FM OMEGA TX91-T3 (Thermocouple, T, -18 to 149 °C)
Hãng sản xuất: OMEGA Model: TX91-T3 - Liên hệ
Gọi để có giá tốt
TP. Hà Nội: (024) 35.381.269
TP. Đà Nẵng: (023) 63.747.711
TP. Bắc Ninh: (0222)730.39.68
TP. HCM: (028) 38.119.636
Height: 29 mm
Weight: 50 g
Accuracy: ± 0.1 %
Diameter: 45 mm
Approvals: FM
Isolation: Non-Isolated
Linearity: ±0.1%
Hysteresis: ±0.1%
Input Type: Thermocouple
Calibration: Trimpot
Sensor Type: Transmitter
Probe Length: 0 mm
probe-length: 0 mm
Accuracy Note: ±0.1% FS (includes effects of linearity, hysteresis and repeatability) referenced to the mV input
Repeatability: ±0.1%
Supply Voltage: 11 to 44 Vdc
Dimensions Note: 29 H x 45 mm Dia (1.125 x 1.75") (height includes terminal strip)
Sheath Material: N/A
Electrical Output: 4 to 20 mA
Supply Power Note: 11 to 44 Vdc; 24 Vdc recommended
Supply Power Type: DC
Thermocouple Type: T
Loop Resistance, Max: (Vs-11V)/0.02A
Electrical Connection: Screw Terminal
Temperature Input Range: -18 to 149 °C
Storage Temperature, Max: 90 °C
Storage Temperature, Min: -65 °C
Operating Temperature, Max: 85 °C
Operating Temperature, Min: -32 °C
Zero Setting Adjustable Range: ±10%
