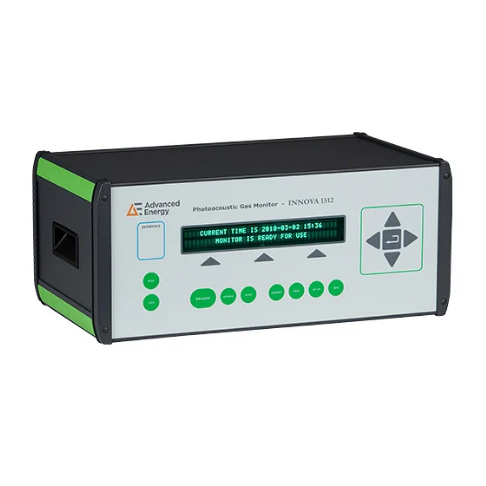

Advanced Energy Innova 1512 可定量及实现远程控制的气体监测系统 (60cm3)

- Measurement Technique: Photoacoustic Infrared Spectroscopy
- Filter Capacity: Up to 5 + water from 27 different filter options
- Detection Limit: Gas dependent, but typically in the ppb region
- Repeatability: 1% of measured value
- Multiple Point Monitoring: Optional integration with Innova 1409 Multi Point Sampler for up to 24 channels
- Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
- Storage Temperature: -25 ~ 55°C (-13 ~ 131°F)
- Dimensions (W x H x D): 443 mm x 195 mm x 244 mm (17.44" x 7.68" x 9.60")
- Weight: 11 kg (24.3 lb)
Pumping System Specifications:
- Air Volume Per Sample:
Auto: Tube Length 1 m: 140 cm3/sample
Fixed Time: Chamber 2 s, Tube 3 s: 100 cm3/sample
Fixed Time: Chamber 2 s, Tube "OFF" : 10 cm3/sample
- Total Internal Volume: 60cm3 (of the measurement system)
- Power Ratings: ≈85 VA, 100 ~ 240 VAC ± 10%, 50 and 60 Hz, Class 1
- Monitor Interface: USB, Ethernet, and RS232
- Safety:
EN/IEC 61010-1 3rd Edition
CAN/CSA C22.2 No. 61010-1-04
UL 61010-1 3rd Edition
