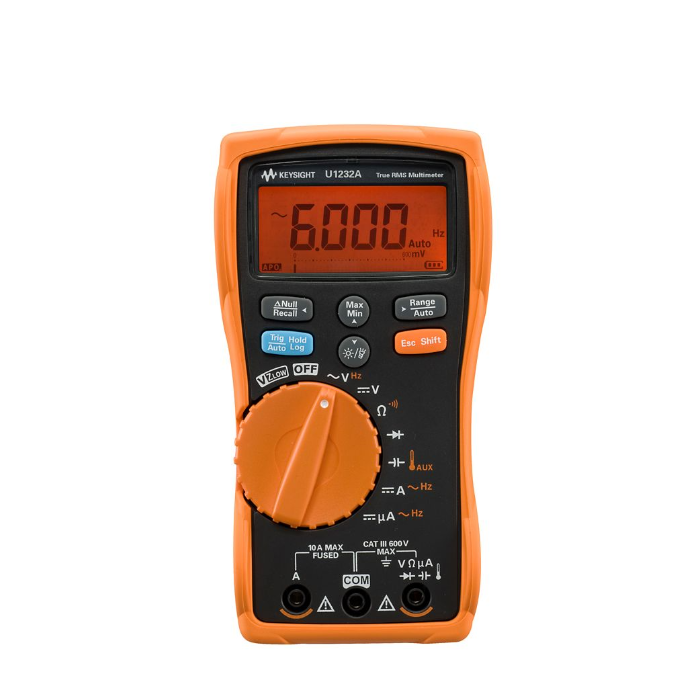

KEYSIGHT U1232A 手持式数字万用表

- Voltage DC:  600 mV, 6 V, 60V, 600V /0.5%

  Resolution:  0.1 mV, 0.001 V, 0.01 V, 0.1 V

- Voltage AC True RMS : 600 mV, 6 V, 60V, 600V /1%

  Resolution: 0.1 mV, 0.001 V, 0.01 V, 0.1 V

- Resistance: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 60 MΩ /0.9%

  Resolution:0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ

- Diode: 2 V/0.9%

  Resolution: 0.001 V

- Current DC: 60 μA, 600 μA, 6 A,10 A /1.0%

  Resolution: 0.01 μA, 0.1 μA, 0.001 A, 0.01 A

- Current AC: 60 μA, 600 μA, 6 A,10 A /1.5%

  Resolution: 0.01 μA, 0.1 μA, 0.001 A, 0.01 A

- Capacitance: 1000 nF, 10 μF, 100 μF, 1000 μF, 10 mF /1.9%

  Resolution: 1 nF, 0.01 μF, 0.1 μF, 1 μF, 0.01 mF

- Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz /0.1%

  Resolution: 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz

- Built-in:  Flash light

- Zlow - Low impedance mode: yes

- Kết nối máy tính PC: IR-USB (Chọn mua thêm)

- Kết nối từ xa: IR- Bluetooth (Chọn mua thêm)

Power supply: Battery 4 x 1.5 V AAA

Dimensions: (H x W x D): 169 mm x 86 mm x 52 mm

Include: Quick Start Guide,  Certificate of Calibration (CoC), U1167A 4 mm Tips probes test leads, 4 x 1.5 V batteries
