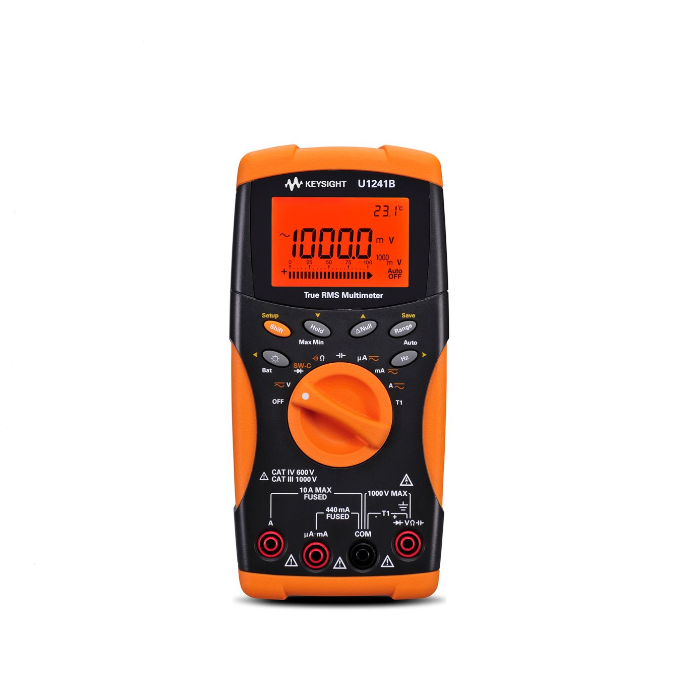

KEYSIGHT U1241B 手持式数字万用表

- Voltage DC:1000.0mV, 10.000 V, 100.00V, 1000.0V /0.09%

- Voltage AC (True RMS): 1000.0mV, 10.000V, 100.00V, 1000.0V /1%

- Current DC: 1000.0μA, 10000μA, 100.00mA, 440.0mA,  10.000A /0.1%

- Current AC (True RMS): 1000.0μA, 10000μA, 100.00mA, 440.0mA, 10.000A/

- Resistance:1000.0Ω, 10.000kΩ, 100.00kΩ, 1000.0kΩ, 10.000MΩ, 100.00MΩ /0.3%

- Diode: 1V/ 0.3%

- Capacitance:

  1000.0 nF, 10.000 μF, 100.00 μF,1000.0 μF, 10.000 mF /1.2-2%

- Frequency:100.00 Hz, 1000.0Hz, 10.000kHz, 100.00kHz, 1000.0kHz /0.03%

- Thermocouple type: –40 to 1000 °C/ 1%

  (option)

- Switch counter: yes

- 4-20mA % Scale: Yes

- PC connectivity: IR-USB (option)

- Connectivity: IR-to-Bluetooth (option)

Power supply: Battery 4 x 1.5 V AAA

Dimensions: (H x W x D): 193.8 mm x 92.2 mm x 58.0 mm

Include: Four 1.5 V AAA alkaline batteries, Certificate of Calibration (CoC), Quick Start Guide

Detail

View Data Sheet

Option:

U1162A

Alligator clip

U1163A

Grabbers, SMT

U1164A

Test probes, fine tip

U1168B

Test lead kit

U1169A

Test Probe Leads (with 19-mm tips and 4-mm tips)

U1171A

Magnetic hanging kit

U1172A

Transit case for handheld DMM, aluminum-clad

U1174A

Carrying case, soft

U1177A

Bluetooth adaptor

U1179A

IR connectivity bracket for U1240 Series HHDMM

U1181A

Immersion probe type K

U1182A

Surface probe, industrial

U1183A

Probe, air

U1184A

Adaptor, temperature probe

U1186A

Thermocouple (K-type, 1m) and adapter

U1187A

Thermocouple (K-type, 3.5m) and adapter

U1583B

AC current clamp
