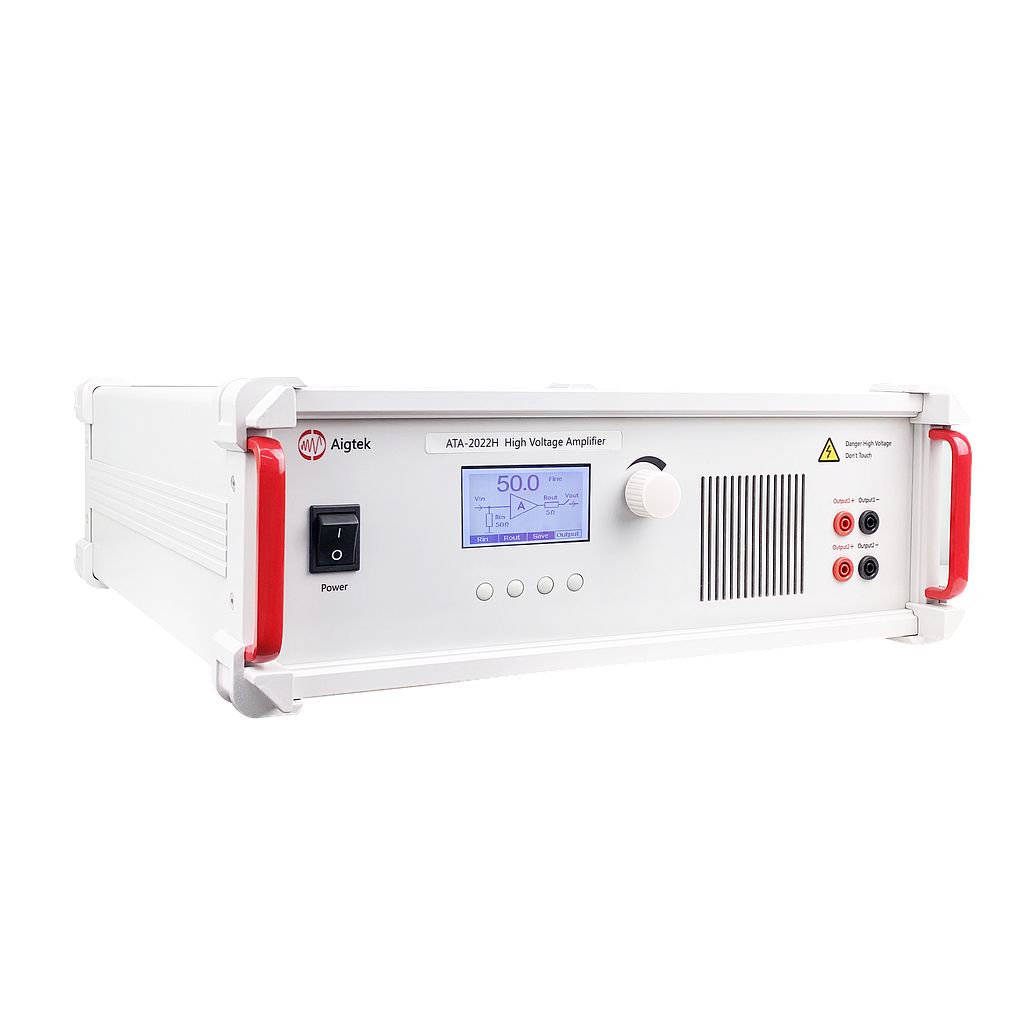

Aigtek ATA-2022H High Voltage Amplifier ((-3dB) DC ~ 1MHz, 200Vp-p (±100Vp), 500mAp, 50Wp, 2CH)

Number of channels: 2

Output form: Single output

Bandwidth（-3dB）: DC~1MHz

Maximum output voltage: 200Vp-p（±100Vp)

Maximum output current :500mAp

Maximum output power: 50Wp

Fuse: 5A/250V

Voltage gain :x0~60（0.1 step）

Load RL upper limit: ≥200Ω

Output resistance: 5Ω /1kΩ (Customizable)

Input resistance :50Ω / 5kΩ

Input amplitude :0~10Vp-pMAX

Output voltage error: ≤±3% FS@1kHz

Voltage monitoring :100:1（±5%）

Slew Rate :500V/μs

Total harmonic distortion （THD）: ≤0.1%@1kHz，100Vp-p

Output voltage Zero-point drift: ≤0.1V

Signal-noise ratio(SNR) :≥80dB

Output Connector: 4mm Banana socket

Protection: Overcurrent protection

Signal Ground: It is connected with the grounding of the shell and the power line

Supply voltage: AC220V±10%，50Hz

Operating temperature:0℃~45℃

Storage temperature :-20℃~50℃

Humidity: ≤80%RH，No condensation

Size (W * H * D): 440*163*470mm
