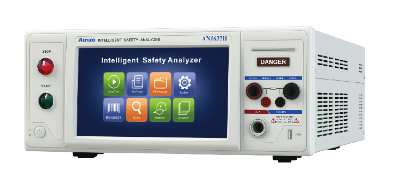

Ainuo AN1637H(F) Electrical safety analyzer (200VA)

1) AC Hipot test
Rated output capacity: 200VA(5000V/40mA), short-circuit current more than 200mA
Output Voltage: 100-5000V, accuracy: ±1%
Output Frequency: 50Hz/60Hz accuracy: ±0.1Hz
Alarm current: 0.10-40.00mA, accuracy: ±1%
Time range: 0.1-999.9s, accuracy: 2%
Output voltage waveform: Sine wave, less than ±0.2%

2) DC Hipot test
Output voltage setting: 100~6000VDC,accuracy: ±1%
 Voltage range,Accuracy: 0.01~6.00VDC,accuracy: ±1%
 Frequency range,Accuracy: 0.0~10000pA,accuracy: ±1%
 Current range,Accuracy: 0.1~999.9s,accuracy: ±0.2%

3)Insulation resistance test
Output Voltage: 100-25000VDC, accuracy: ±2%
Resistance range:
+ 100-499V: 0.1~2000MΩ,±5%
+ 500-2500V: 0.1~1000MΩ,±2%

4)Grounding resistance test
Rated output: The maximum output current 32A, the maximum test resistance 600m0 Open voltage less than 12V
Output Current: 2.OA-32.OAAC, accuracy: ±1%
Output Voltage: 3.0-6.4V, accuracy: ±1%
Output frequency: Sine wave, 50Hz or 60Hz

Weight: 40kg
Dimension: 483x178x550mm
