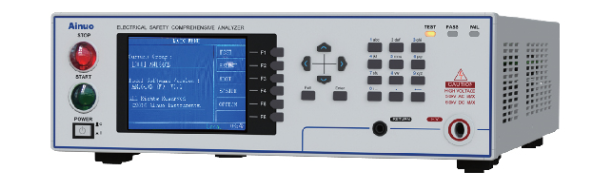

Ainuo AN9636HS(F) 电机安全分析仪 (5000V/100mA)

1) AC Hipot test
Rated output capacity: 500VA(5000V/100mA), short-circuit current more than 200mA
Output Voltage: 100-5000V, accuracy: ±1.5%
Output Frequency: 50Hz/60Hz accuracy: ±0.1Hz
Alarm current: 0.00-100.00mA, accuracy: ±2%
Time range: 0.1-999.9s, accuracy: ±0.2%
Output voltage waveform: Sine wave, less than 2%
2) DC Hipot test
Output Voltage: 100-6000VDC, accuracy: ±1.5%
Voltage Range: 0.100-6.000kVDC, accuracy: ±1.5%
Current Range: 0.00-10.00mA, accuracy: ±2%
Time range: 0.1-999.9s, accuracy: ±0.2%
3)Insulation resistance test
Output Voltage: 100-25000VDC, accuracy: ±2%
Resistance range:

+ 100-499V: 0.1~1000MΩ,±8%

                       1000~2000MΩ,±12%

+ 500-2500V: 1~199MΩ,±2%

                        200~999MΩ,±5%

                        1000~9999MΩ,±15%

Communication port: Network port, RS232,RS485, GPIB
Alarm lamp connector: Optional three-color alarm lamp
Optional: High- voltage scanner connector (Built-in 3-channel  or External multiple channels)
Weight: 25kg
Dimension: 426x133x550mm
