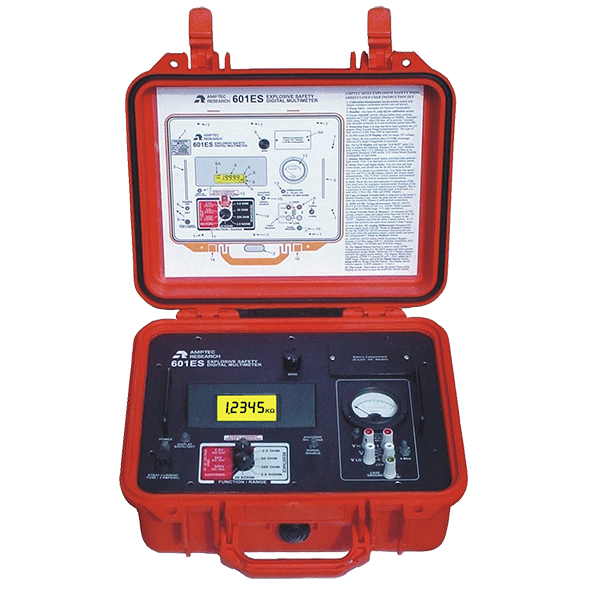

Amptec 601ES 耐候安全数字万用表 (2 Ω,20KΩ)

Range: 2 Ω

Nominal Current: 5 mA

Failsafe Current: 8 mA

Resolution: 100 uΩ


Range: 20 Ω

Nominal Current: 5 mA

Failsafe Current: 8 mA

Resolution: 1 mΩ



Range: 200 Ω

Nominal Current: 0.5 mA

Failsafe Current: 1.5 mA

Resolution: 10 mΩ




Range: 2 KΩ

Nominal Current: 50 uA

Failsafe Current: 150 uA

Resolution: 100 mΩ




Range: 20 KΩ

Nominal Current: 5 uA

Failsafe Current: 15 uA

Resolution: 1 Ω



Accuracy: 2 V to 200 V AC/DC: ± 0.5% of range

Accuracy: 600 V AC/DC: ± 1% of reading range

Accuracy: 2 A AC/DC: ± 0.5% of reading range

Accuracy: 2 Ω to 20 Ω: ± .05% of (reading + range)


Display: 4 1/2 digit LED

Terminals: 4-wire Kelvin

Storage Temperature Range: -20 °C to 70 °C

Operating Temperature Range: 0 °C ± 50 °C

Dimensions: 9.5″ x 11″ x 5″

Weight: 8 lbs.

Power: 4 ea AA batteries

Max. Input Voltage: 650 VDC

Open Circuit: 1.6 VDC

Max. Failsafe Current: 8 mA

Overload: Display flashes “>>>OR”

Update: 300 ms.
