Aqualabo NC-FIX-C-00251 STACSENSE UV254 COD/BOD/TOC 传感器,Op 2 mm 15m ACTEON 5000 (2mm, 0-750 Abs/m, 0-1300 mg/L, 0-350 mg/L, 0-500 mg/L)

Transmitter ACTEON 5000

Software and features

Digital sensor: 2 inputs digital sensor RS485

2 analog input: In mode 0/4-20 mA or 0-10 V

2 relay input: Function of transfer on exit(release) TOR

                      Information of external cleaning system: swing in maintenance mode

2 analog outputs: Choice of 2 parameters programmable according to the connected sensor

                              Programming PID

2 digital outputs /relay: NO/NF customizable

                                     Instruction point: setting of the measuring range

                                     (Hysteresys / activation way) and time of activation,

                                     Command for external cleaning system

                                     Output alarm for defect material sensor

Digital output: Modbus RTU

                       Ethernet TCP IP

Data recording: Internal flash memory

                          Frequency recording: 1-120 mn

                          Recording journal of events, measure sensors.

Atmospheric pressure sensor: To compensate oxygen pression

Characteristics

Display: Backlit graphic LCD touch Screen – Size95x54 mm

Analog outputs: 0/4.00 – 20.00 mA with galvanic isolation

                          Charge max 250 W

Relay outputs: 6 A /250 V

Operating conditions: Temperature : -15°C to + 50 °C

                                    Temperature of storage/transport : -15°C to + 50°C

USB port: Unloading of the recorded data

Power/ Electrical protections: 100-240 V AC/DC 50-60 Hz

                                                - Option 9-28 V DC/DC

                                                 - Electrical protection: consistent EN61010-1 :2010

Housing

Dimensions (LxHxP): 213 x 185 x 84 mm

Material: Grey ABS

Protection rating: IP 65

Front: Antireflective polyester

Containing:

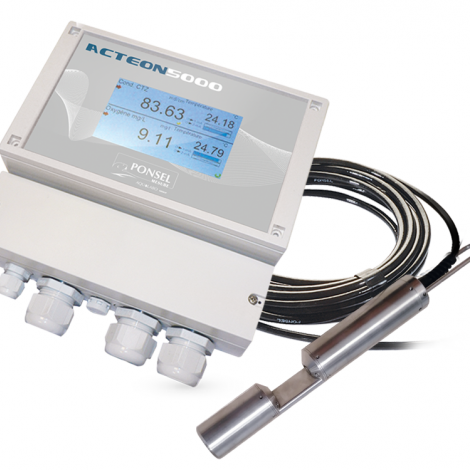

- 1  ACTEON 5000 Transmitter digital dual sensors

- 1 STACSENSE Opt path 2 mm with 15m cable

For specific range please check the attachment below!

Details

Datasheet

Datasheet StacSense


Datasheet Transmitter digital physicochemistry ACTEON 5000


User Manual StacSense


User Manual Transmitter digital physicochemistry ACTEON 5000_Calibration procedure STACSENSE


User Manual Transmitter digital physicochemistry ACTEON 5000
