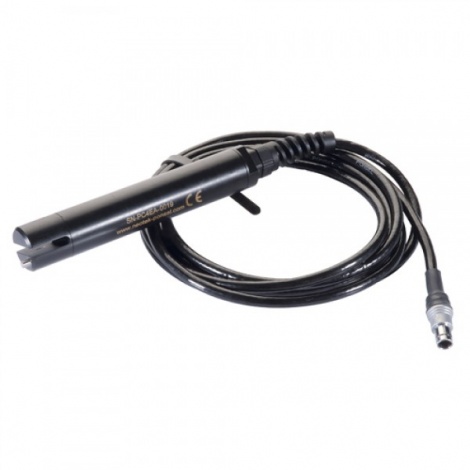

Aqualabo PF-CAP-C-00149 电导率数字传感器,3m C4E 适用 ODEON (0 –2000 μS/cm)

TECHNICAL SPECIFICATIONS

Measure principle Conductivity: sensor with 4 electrodes (2 graphic, 2 platinum).

Measure ranges conductivity:

0-200,0 μS/cm

0 –2000 μS/cm

0,00 –20,00 mS/cm

0,0 –200,0 mS/cm

Resolution Conductivity: 0,01 to 1 according the range

Accuracy Conductivity: +/- 1 % of the full range

                                       Beyond 100 mS/cm use appropriate buffer solution

Measure range salinity: 5-60 g/Kg

Measure range TDS –KCl: 0-133 000 ppm

Measure range Temperature: 0,00 °C to + 50,00°C

Resolution Temperature: 0,01 °C

Accuracy temperature:  ± 0,5 °C

Response time: < 5 s

Working temperature: 0°C to 50°C

Temperature compensation: NTC

Stocking temperature: - 10°C to + 60°C

Signal interface: Modbus RS-485 (option SDI-12)

Maximum refreshing time: Max < 1 s

Sensor power-supply: 5 to 12 V

Electric consumption: Standby : 25 μA

                                    Average RS485 (1 measure/seconde) : 6,3 mA

                                    Average SDI12 (1 measure/seconde) : 9,2 mA

                                    Current pulse : 500 mA

Sensor

Dimensions: Diameter : 27 mm ; Lenght : 157 mm

Weight: 350g (sensor + 3 m cable)

Material: PVC, DELRIN, stainless steel

Maximum pressure: 5 bars

Connection: 9 armoured connectors, polyurethane jacket, bare-wires or waterproof Fisher connector

Protection: IP68

For specific range please check the attachment below!

Details

Datasheet

Datasheet Conductivity digital sensor C4E_2


Datasheet Conductivity digital sensor C4E


Manual

User Manual Conductivity digital sensor C4E_Wiring guidelines


User Manual Conductivity digital sensor C4E
