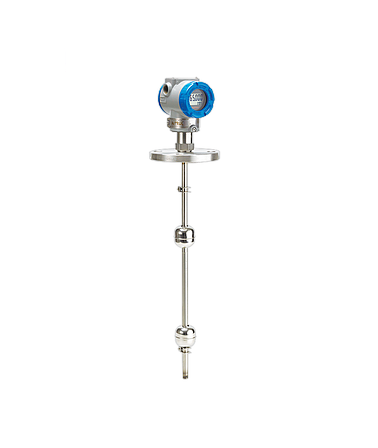

Autrol ALT6500 接触式液位计(4m)

Type: Contacted type Level Transmitter
Range: 4 meter
Accuracy: ± 1 mm or ± 0.01 % of CS
Technology: Magnetostrictive
Max pressure: Max 20 bar
Applicable condition: No Foam, No Sticky, No Sludge, No Vacuum, in Tank up to 100 deg C

Protocol: 4-20mA, Digital Communication, HART 7
Trim ability: Zero, DAC, FULL
Power supply & Load Requirement: 250 to 360 ohm @ 24 Vdc, Loop Powered
Falure Mode: Low ≤ 3.78 mA, High ≥ 21.1 mA
External Buttons: Zero & Span 2 buttons for device configuration
Process Temp. limit: -40 to 80℃
Certificate: KCs, IP66 (Ex d)
