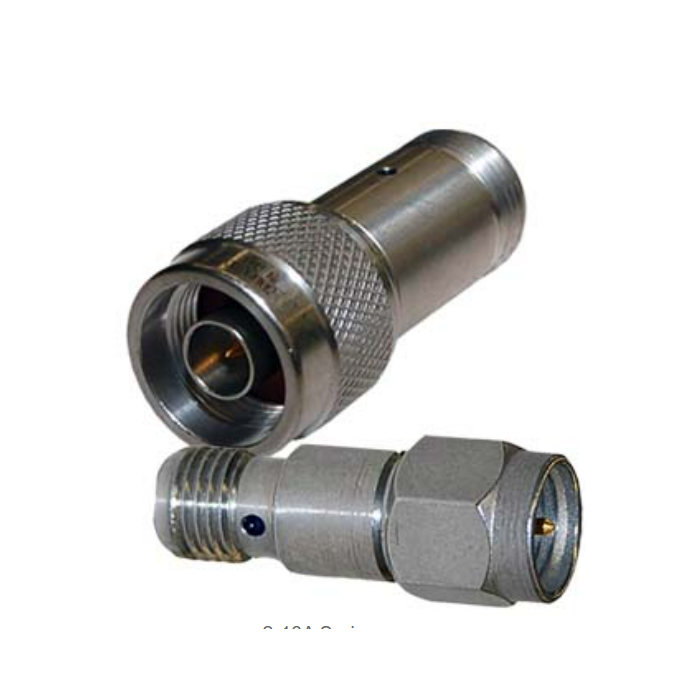

Bird 2-18A-MFN-03 双向RF衰减器 (2W, 18GHz, Male/Female, N, 03dB)

Power Rating: 2 W

Connector: SMA

VSWR and Frequency Range:

      1.15:1 from DC ~ 4 GHz

      1.20:1 from̀ 4 ~ 8 GHz

      1.25:1 from 8 ~ 12.4 GHz

      1.35:1 from 12.44 ~ 18 GHz

Impedance: 50 Ohm

Temperature: -40 to 40 °C (-40 to 104 °F)

PIM: -110 dBc Min.

AC Power: None

Humidity: 95% non-condensing

Standard Attenuation Values: 3 dB

Dimensions: Dia. 1.8” x 0.9” / 46 x 23 mm

Weight: 2.5 oz./71 g

Finish: Stainless Steel

Details

Datasheet
