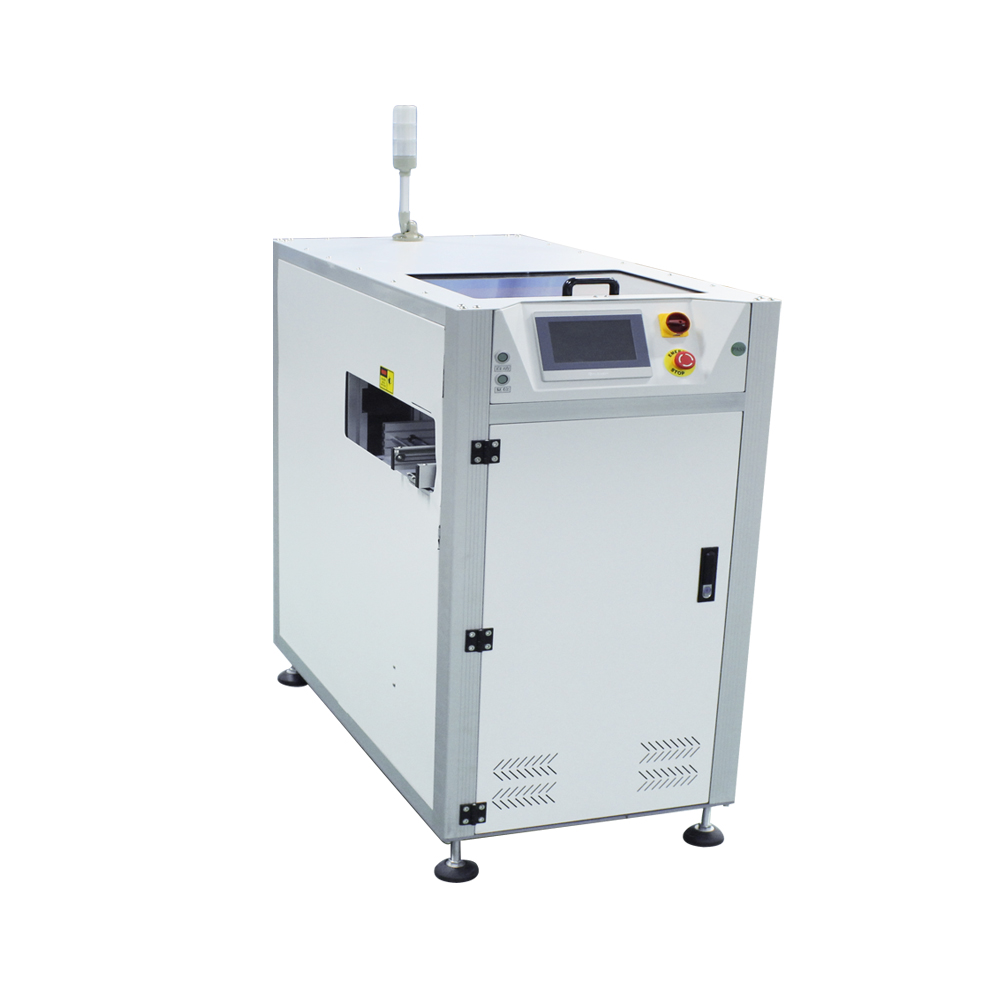

Censtar VL-460W-TN PCB Suction Loader (800*1270*1300, 50*50-445*330)

Dimension(mm): 800*1270*1300

PCB size(mm): 50*50-445*330

Maximum PCBs capacity: 400pcs(0.6mm thick PCB)

Time feed PCB: Approx. 12 Seconds or specity

Indexing pitch: 10. 20. 30. 40mm selectable

Power supply: AC 220V±10V, 50/60HZ

Power: Max 150VA

Air prssure: 4-6bar

Air consumption: 10itr/min max

Transport height: 900±20mm(or customer specified))

PCB direction: L-R or R-L (optional)

Weight: 340kg

Details

This equipment is used for PCB bare board material operation on the production lineFeatures

Features

1.Applies to the PLC + touch screen control, easy to operate.

2.Enclosed design ensures highest leavel of safety.

3.Adjust the position of the suction nozzle to ensure the clamping of PCB.

4.Smooth and parallel width adjustment (lead screw)

5.Smooth and accurate translation (stepping motor)

6.Minimize the transmission gap between conveyors.

7.With SMEMA signal.
