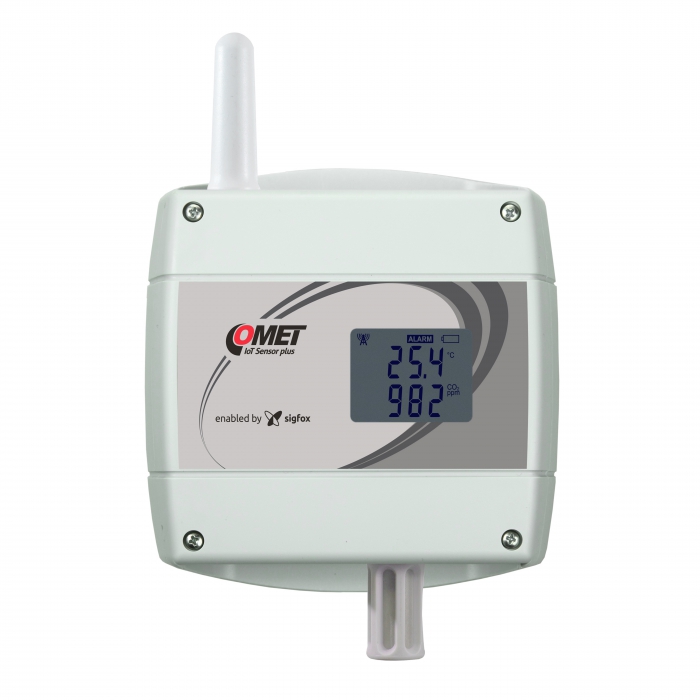

Comet W6810 IoT Wireless Temperature, Relative Humidity and CO2 Sensor (-20~+60 ° C, 0~100% RH, -60~+60 °C)

Measured value: Temperature, Relative humidity, Counted values (dew point…), CO2

Temperature sensor:

  Measuring range: -20 to +60 °C

  Accuracy: ±0.4 °C

  Resolution: 0.1 °C

  Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s): t90 < 8 min (temperature change 20 °C)

Humidity sensor:

  Measuring range: 0 to 100 % RH

  Accuracy: ±1.8 % RH from 0 to 90 % at 23 °C

  Resolution: 0.1% RH

Dew point:

  Measuring range: -60 to +60 °C

  Accuracy: ±1.5 °C at ambient temperature T <25 °C and RH >30 %

  Resolution: 0.1 °C

CO2 sensor:

  Measuring range: 0 to 5000 ppm

  Accuracy: ±(50ppm +2% from reading) at 25°C and 1013hPa

  Resolution: 1 ppm

Operating temperature: -20 to +60 °C

Channels: internal sensor for temperature, humidity and CO2

Message transmission interval: adjustable 10 minutes, 20 minutes, 30 minutes,1 hour, 3 hours, 6 hours, 12 hours, 24 hours

Operating frequency: 868 MHz

Maximum transmission power: 25mW

Sigfox radiation class: 0U

Radio configuration zone: RC1 (operation is possible in Europe, Iran, Oman and South Africa)

Typical range of transmitter: 50 km in the field, 3 km in the city

Power: Lithium battery 3.6 V, C size, capacity 8.5 Ah

Protection class: IP20

Number of battery slots: 1

Dimensions: 179 x 134 x 45 mm

Weight (including batteries): 350g

Included in delivery

  W6810

  Instruction Manual

  Traceable Calibration Certificate

  1x Lithium battery 3.6 V

  FREE FULL VERSION Analytical Software COMET Vision

Details

Datasheet


Manual
