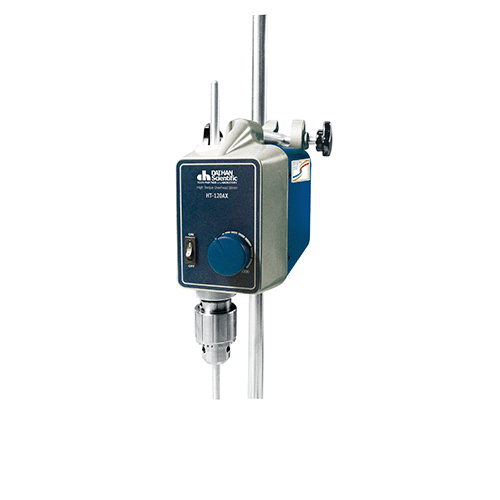

DaiHan HT-50AX-Set High-Torque Analog Overhead Stirrer Package-set (40 L; 60,000 mPas)

Stirring Capacity (H20):  Max. 40 Lit

Speed Range: 50~1000 rpm

Maximum Viscosity/Torque: 60,000 mPas/180 Ncm

Motor: Worm-Geared DC Motor (3:5:1 Ratio)

Motor Rating(Input/Output):  83/75 W

Chuck Grip Capa. Φmm: dia Φ 6~12mm Shafts

"Push-Through" Shafts: dia Φ 10mm or Less

Permissible Temp. & Humidity: 0~40°C, 80%

Controller: Digital PID Control

Safety Device: Over Heat & Overload Protector for Motor

Material: ABS and Aluminum

Dimension (w x d x h):  90 x 180 x 130 mm

Weight: 3.5 kg

Packing Size:  320 x 300 x 180 mm

Gross Weight: 5kg

Power Consumption: 85W

Electrical Reqts: 1 Phase, AC 230 V, 50/60Hz

"HT-50AX" Set : Complete with ( "HT-5OAX" Stirrer Unit)

"S732" Stainless-steel Impeller(Rod Φ8x L5OOmm. 4-Blade Φ70m), "CL200" Clamp,and "KA1177" Safety Stand(Rod Φ23 x L800mm. Base w34 x d29cm)
