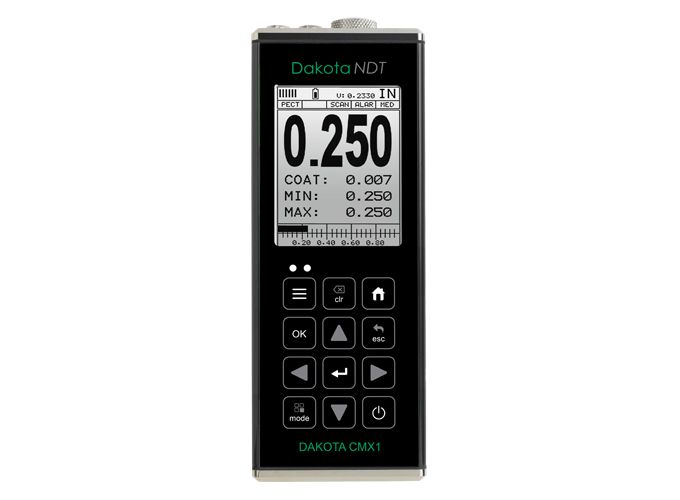

Dakota CMX1 腐蚀测厚仪

Measurement Range:

PE: 0.63 - 1219.2mm (0.025 - 48”)

PETP: 0.63 - 1219.2mm (0.025 - 48”)

EE: 2.54 - 152.4mm (0.100 - 6.0“)

EEV: 1.27 - 25.4mm (0.050 - 1.0”)

CT: 0.01 - 2.54mm (0.0005 - 0.100”)

PECT: 0.63 - 1219.2mm (0.025 - 48”)

PECT: 0.01 - 2.54mm (0.001 - 0.100")

Measurement Resolution: 0.01mm (0.001”)

Velocity Calibration Range: 309.88 - 18,542m/s (0.0122 - 0.7300in/µs)

Transducer Probe Type: Dual Element

Measurement Accuracy*1: 0.01mm (0.001”)

Memory: 4GB Internal Memory

Operating Temperature: -10 to 60ºC (14 to 140ºF)

Data Output: USB

Power Supply: 3 x AA batteries and via USB

Battery Life: Alkaline: greyscale 35 hrs, colour 12 hrs, Nicad: greyscale 10 hrs, colour 5 hrs, NI-MH: greyscale 35 hrs, colour 12 hrs

Gauge Weight: 383g (13.5oz) - including batteries

Gauge Dimensions: 63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)

Packing List: Unit, Selectable Transducer, Couplant, Manual, Plastic Carrying Case, Certificate of Calibration and AA Batteries. PC Software and Data Transfer Cable included with data logging gauges.

*1Measuring range & accuracy depends on material, surface conditions and the transducer selected

*2Approximate battery life, when in continuous measurement mode.
