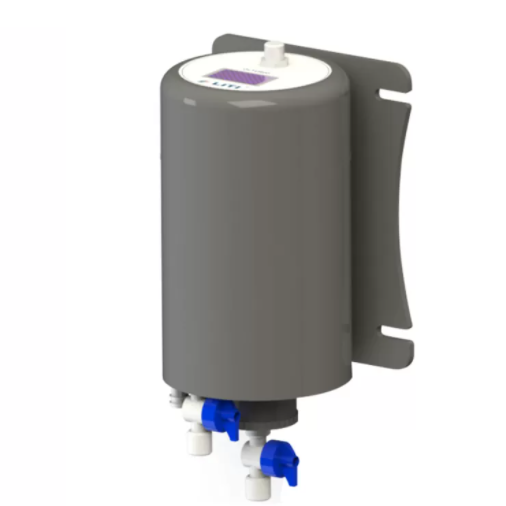

Daruifuno OLTU600 数字激光浊度传感器 (0.01~100NTU)

Measuring Range: 0.01~100NTU 0.1~50°C

Light Source: 660nm laser light source

Display Accuracy:

0.001~40NTU is ±2% of reading or ±0.015NTU take the larger on

40~100NTU is ±5% of reading

Operating Environment: 0~45°C

Flow Rate: 100ml/min≤x≤500ml/min

Calibration: Standard solution/water sample/zero point calibration

Working Instructions: Power indicator

Sample Interface: Injection port: 1/4NPT, discharge port: 1/2NPT

Main Material Body: ABS+Nylon

Dimensions: Length*Wide*Height: 140*117*214mm

Net Weight: 2Kg

Waterproof Level: IP66

Storage Temperature: -15~65°C

Datasheet
