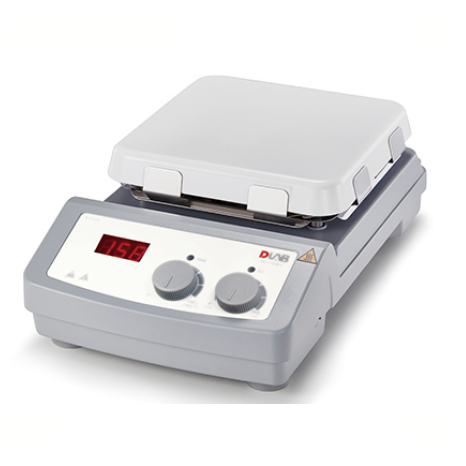

DLAB MS7-H550-S package 1 LED 数字7’’方 磁力加热搅拌器 (~550°C; 0~1500rpm; with PT1000A)

  • 制造商:DLAB
    Model: MS7-H550-S package 1
    P/N: 8130122211
    保障: 12 Month
    • 报价要求 Request a Quotation
  • 联系
    • 加入购物车
    • 立即购买
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Work plate dimension (WxD): 184x184mm (7 inch)

Work plate material: Glass ceramic

Motor type: Shaded pole motor

Stirring positions: 1

Max. stirring quantity (H2O): 10L

Max. magnetic bar (length): 80mm

Speed range: 0~1500rpm

Speed display: Scale

Temperature display: LED

Heating temperature range: Room Temp.~550°C, increment: 5°C

Temperature control accuracy: ±10°C

Overheating protection: 580°C

Temperature display accuracy: ±1°C

External temperature sensor: PT1000 (accuracy: ±0.2)

"Hot" warning: 50°C

Protection class: IP21

Motor rating input: 15W

Motor rating output: 1.5W

Power: 1030W

Heating output: 1000W

Voltage: 100~120/200~240V; 50/60Hz

Dimension (WxDxH): 215x360x112mm

Weight: 4.5kg

Permissible ambient temperature and humidity: 5~40°C, 80%RH

Please choose the EURO plug when ordering:

+ Euro plug, 200V~240V/50Hz/60Hz

Included accessories: PT1000A (18900016)

Optional accessories: (refer to datasheet page 72-73)
