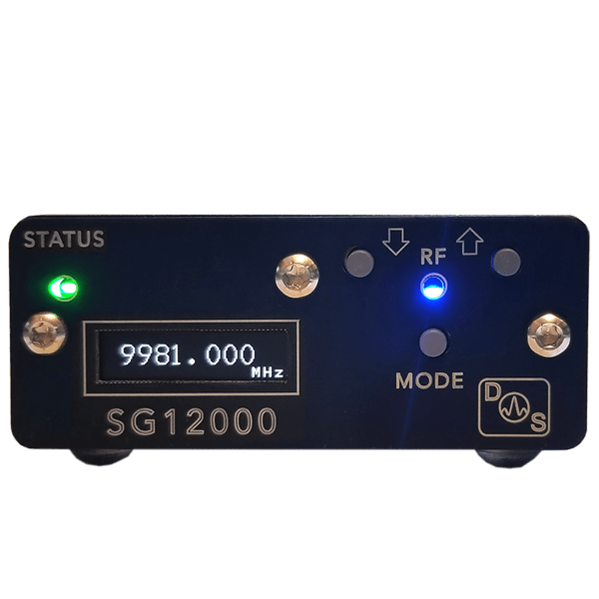

DS INSTRUMENTS SG12000 RF信号发生器 (25MHz – 12GHz)

Frequency range: 25MHz – 12GHz

Calibrated power level range: -20dBm to +10dBm

Uncalibrated power level range: -35dBm to +12dBm typical

Power control resolution: 0.5dB steps + 0.1dB vernier (variable attenuator)

Dimensions: 2.75″ x 1.25″ x 3.15″

Frequency step size: 40-6000Hz (depending on output frequency)

Phase noise at 6GHz: -72dBc at 10KHz offset

Power Input: 5V Standard USB-C (0.75A)

Output Impedance: 50 Ohm

RF Connectors: Gold 18GHz SMA

Details

Datashete
