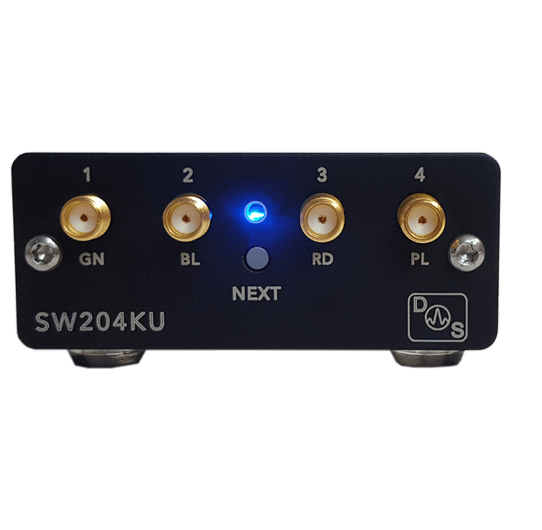

DS INSTRUMENTS SW204KU 超音波转换器 (100MHz – 20GHz)

Super-wideband 100MHz – 20GHz frequency range

Non-reflective design

4 switched, 1 common premium gold SMA ports

Max RF  input power (through) : +26 dBm (0.4W)

Max RF input power (terminated): +22 dBm

Low insertion loss (5dB Typical, 8dB max)

Solid-state reliability and speed

Bi-directional

Usable up to 22GHz with only 10dB insertion loss

Ultra-fast switching time

Superior isolation

LED port status indication

Impedance: 50 Ohm

Micro-USB powered

Details

Datasheet
