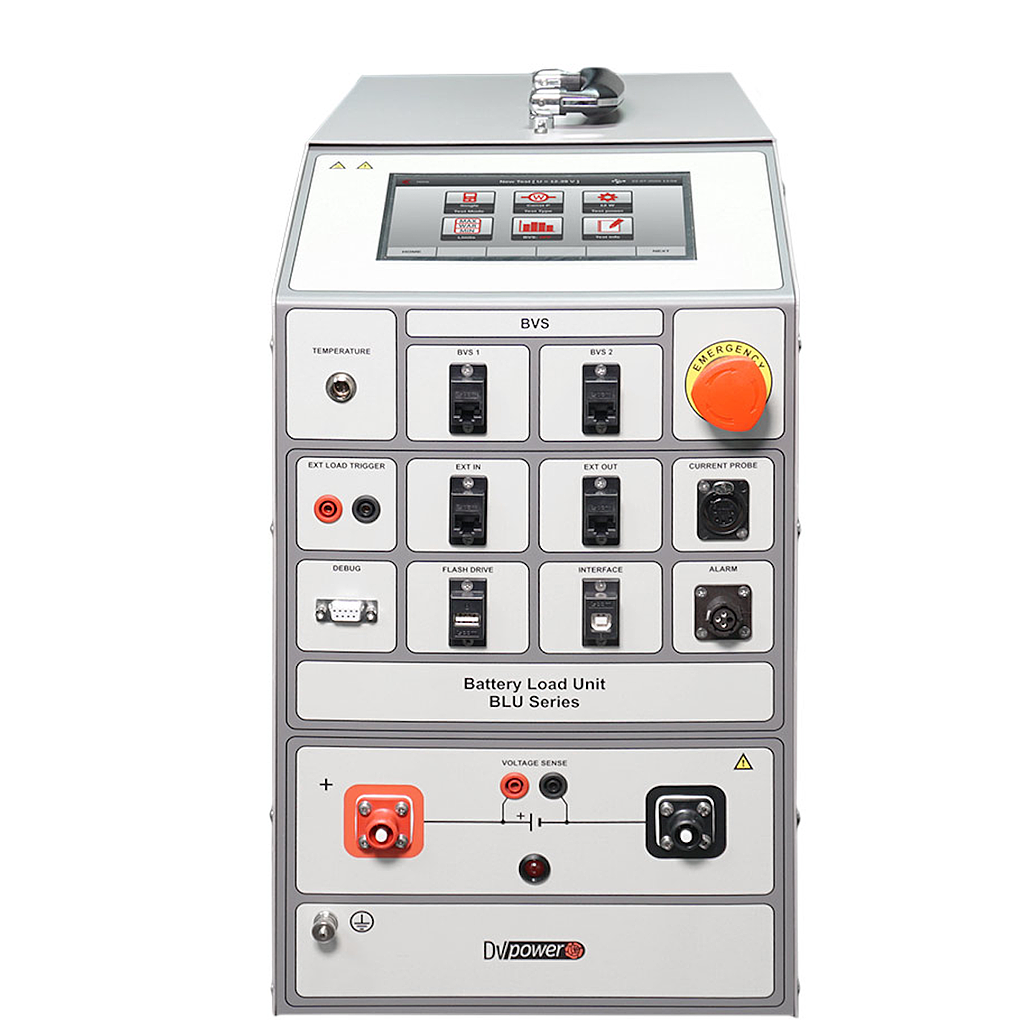

DV Power BLU1350D Battery Capacity Tester (0 – 100 A DC/ 0.1 A)

Mains power supply:

Connection according to IEC/EN60320-1; C320

Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase

Dimension: 590 x 280 x 600 mm (23.2 x 11.0 x 23.6 in)

Weights: 30.0 kg 66.1 lbs

Internal current measurement:

Range: 0 – 100 A DC

Resolution: 0.1 A

Current measurement:

Display range: 0 – 2 999.9 A DC

Basic accuracy: ± (0.5 % of reading + 0.1 A)

Resolution: 0.1 A

Time measurement: ± 0.1% of reading ± 1 digit

Display size: 7 inch colour touch screen display

Range / Resolution:

Current: 0 – 2 999.9 A DC / 0.1 A

Voltage: 0 – 1 999.9 V DC / 0.1 V

Capacity: 0 – 9 999,9 Ah / 0.1 Ah

Time: 00h:00m:00s - 23h:59m:59s / 1 sec

Input for current probe:

Range: 0 – 1 V DC

Input impedance: > 1 MΩ

Communication:

USB

RS232 (optional)

Ethernet (optional)

Load section:

Battery voltage: 0.0 – 1350 V

Power: 0 – 40 kW

Discharge modes: Constant current / power / resistance / voltage; current, power or resistance profile mode

Available languages: English, German, Italian, Polish, Croatian

Environment conditions:

Operating temperature: -20 °C to +50 °C / -4 °F to +122 °F

Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F

Relative humidity: up to 95%, non-condensing

Pollution degree: 2
