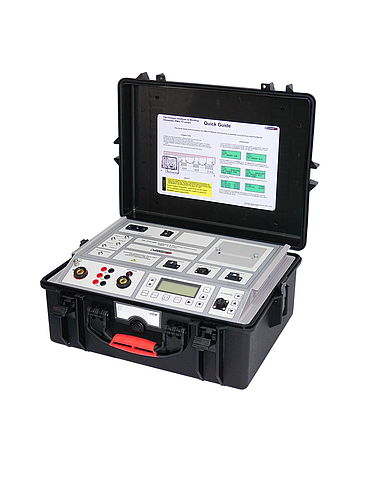

DV Power RMO100TT Tap Changer Analyzer & Winding Ohmmeter

Test current: 5 mA – 100 A

Open voltage: Up to 55 V

OLCT DVtest (DRM): 0.1 ms

Output power: 1300 W

Measurement range: 0.1 μΩ - 100 kΩ

Typical accuracy:

0.1 μΩ – 1.999 kΩ:± (0.1% rdg + 0.1% F.S.)

2 kΩ – 9.999 kΩ: ± (0.2% rdg + 0.1% F.S.)

10 kΩ – 100 kΩ: ± (1.0% rdg + 1.0% F.S.)

Measurement range / Resolution:

0.1 μΩ – 999.9 μΩ/ 0.1 μΩ

1.000 mΩ – 9.999 mΩ/ 1 μΩ

10.00 mΩ – 99.99 mΩ/ 10 μΩ

100.0 mΩ – 999.9 mΩ/ 0.1 mΩ

1.000 Ω – 9.999 Ω/ 1 mΩ

10.00 Ω – 99.99 Ω/ 10 mΩ

100.0 Ω – 999.9 Ω/ 0.1 Ω

1.000 kΩ – 9.999 kΩ/ 1 Ω

10.00 kΩ – 99.99 kΩ/ 10 Ω

Temperature Measurement

Measurement range: -50 ºC – +180 ºC / -58 ºF – +356 ºF

Thermometer Pt100 class B

Resolution 0.1 ºC

Operating temperature: -20 °C – +60 °C / -4 °F – +140 °F

Storage & transportation temperature: -40 °C – +70 °C / -40 °F – +158 °F

Humidity: 0 – 95% relative humidity, noncondensing

Weight: 15.5 kg/ 34.2 lbs

Dimension (WxHxD): 543 x 218 x 427 mm (21.4 x 8.6 x 16.8 in)

Included accessories:

Tap Changer Analyzers & Winding Ohmmeters RMO-TT

DV-TR PC software including USB cable

Built-in tap changer control unit + 5 m cable set

Mains Power cable

Ground (PE) cable

Transport case

Current cables 2 x 10 m 16 mm2 with battery clamps

2 set x Sense cables 2 x 10 m with TTA clamps

Current connection cable 1 x 5 m 16 mm2 with battery clamps

Cable plastic case – medium size

Current clamp 30/300 A power supplied from the instrument with extension 5 m
