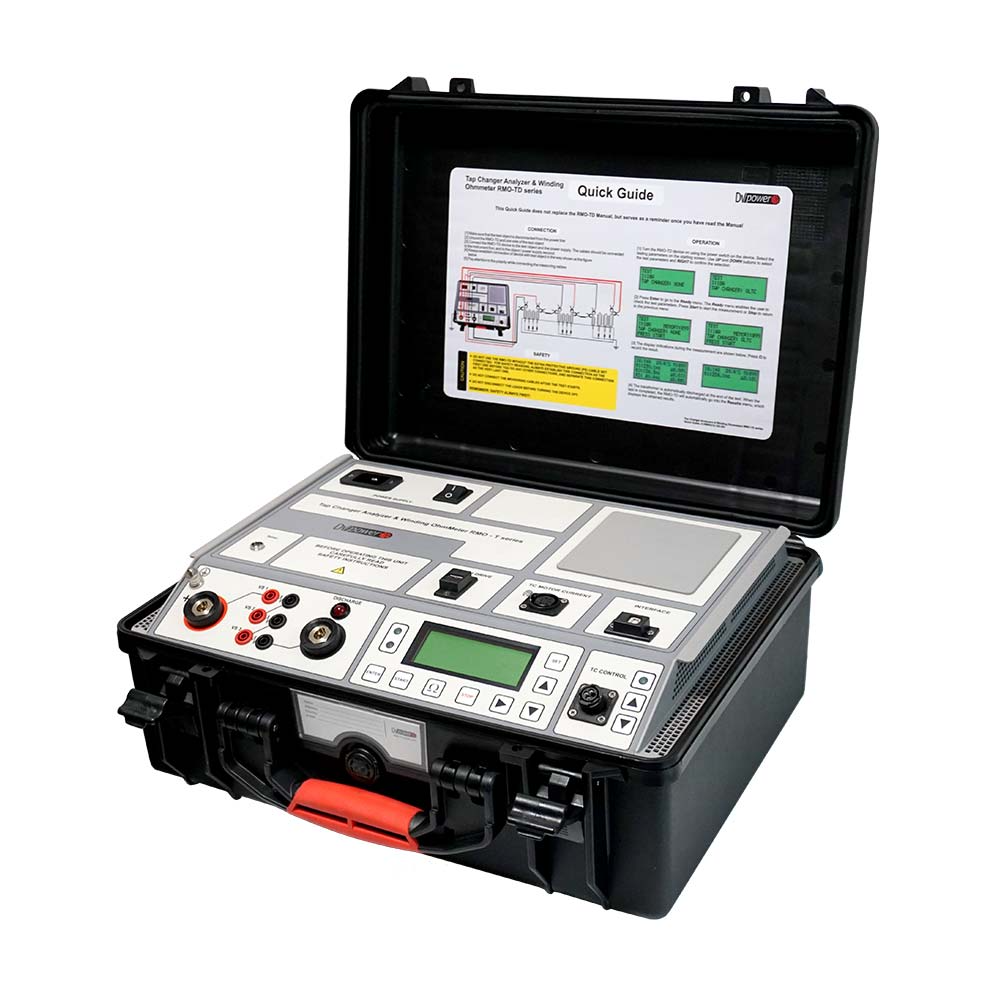

DV Power RMO25TD Tap Changer Analyzer & Winding Ohmmeter

Test current: 5 mA – 25 A

Open voltage: Up to 55 V

OLCT DVtest (DRM): 0.1 ms

Output power: 700 W

Measurement range: 0.1 μΩ - 100 kΩ

Typical accuracy:

0.1 μΩ – 1.999 kΩ:± (0.1% rdg + 0.1% F.S.)

2 kΩ – 9.999 kΩ: ± (0.2% rdg + 0.1% F.S.)

10 kΩ – 100 kΩ: ± (1.0% rdg + 1.0% F.S.)

Measurement range / Resolution:

0.1 μΩ – 999.9 μΩ/ 0.1 μΩ

1.000 mΩ – 9.999 mΩ/ 1 μΩ

10.00 mΩ – 99.99 mΩ/ 10 μΩ

100.0 mΩ – 999.9 mΩ/ 0.1 mΩ

1.000 Ω – 9.999 Ω/ 1 mΩ

10.00 Ω – 99.99 Ω/ 10 mΩ

100.0 Ω – 999.9 Ω/ 0.1 Ω

1.000 kΩ – 9.999 kΩ/ 1 Ω

10.00 kΩ – 99.99 kΩ/ 10 Ω

Measurement range: -50 ºC – +180 ºC / -58 ºF – +356 ºF

Thermometer Pt100 class B

Resolution 0.1 ºC

Operating temperature: -20 °C – +60 °C / -4 °F – +140 °F

Storage & transportation temperature: -40 °C – +70 °C / -40 °F – +158 °F

Humidity: 0 – 95% relative humidity, noncondensing

Weight: 13 kg/ 28.6 lbs

Dimension (WxHxD): 478 x 194 x 389 mm (18.82 x 7.64 x 15.33 in)

Included accessories:

Tap Changer Analyzers & Winding Ohmmeters RMO-TD

DV-TR PC software including USB cable

Built-in Tap Changer Control Unit

Mains Power cable

Ground (PE) cable

Plastic transport case

Current cables 2 x 10 m 10 mm2 (32.8 ft, 7 AWG)

Sense cables 2 x 10 m (32.8 ft) with TTA clamps

Current connection cable 1 x 5 m 10 mm2 (16.4 ft, 7 AWG) with TTA clamps

Current clamp 30/300 A supply from the instrument with extension 5 m (16.4 ft)

Cable bag
