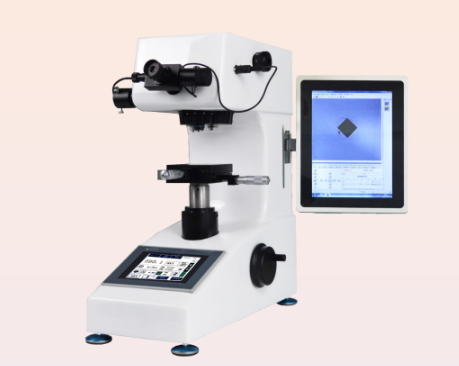

EBP eVIck-1CST 全自动数字式显微维氏硬度计

Turret Automatic

Testing force

10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N), 300g (2.94N), 500g (4.9N), 1000g (9.8N)

Hardness scale HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

HV Software system

5 million pixel camera; camera connect tube and adapter;

Professional HV/HK Indentation image measurement and analysis

software, support automatic measure mode and manual measure

mode, generate test report automatically in word / Excel format


Loading speed ≤0.05mm/sec

Indenter Standard Rectangular pyramid diamond indenter (136o±0.5o)

Resolution 0.025μm

Testing rang 5HV-3000HV

Screen 5.5’’ front color touch screen + 12.1’’ side color touch screen

Eyepiece 10X digital eyepiece

Objective lens 10X (Measurement), 40X (Measurement)

Total magnification 100X (For Measurement) , 400X (For Measurement)

Loading method Automatically (Load, dwell and unload the testing force)

Duration time 1-99s (each step is 1 second)

Maximum height 90mm

Throat depth 95mm

Machine size & N.W 405*290*480mm (L×W×H) 40kg

Packing size & G.W 850x420x600mm( LxWxH) 56kg

Light Source LED cold light source

Power Supply 220V + 5%, 50/60 Hz (110V is available)

X-Y Testing Table

Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm

Executed Standard GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734
