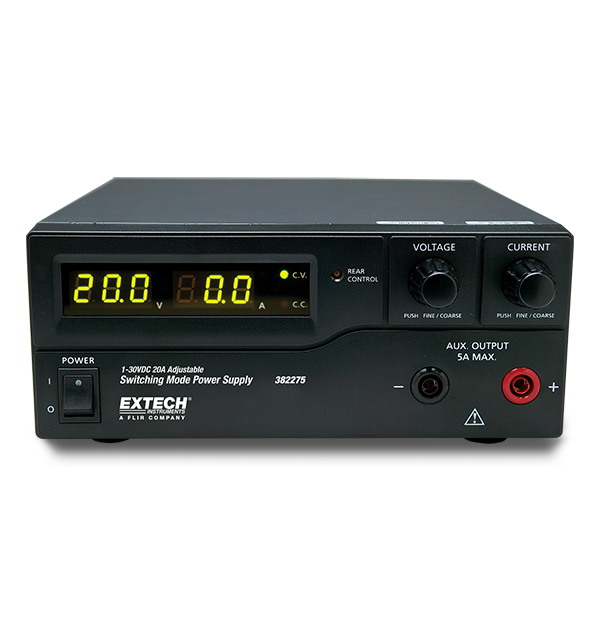

EXTECH 382275 开关式直流电源 (600W, 120V)

GENERAL SPECIFICATIONS

Line Current Regulation: 50mA min

Line Voltage Regulation: 20mV

Load Current Regulation: 100mA min

Load Voltage Regulation: 50mV

Output Current: 1 to 20A

Output Current Basic Accuracy : ±(0.5% of reading + 2 digits)

Output Current Max Resolution: 100mA

Output Voltage: 1 to 30V

Output Voltage Basic Accuracy: ±(0.5% of reading + 2 digits)

Output Voltage Max Resolution : 100mV

Ripple and Noise: <5mVrms

ADDITIONAL DETAILS

Certifications: CE

Dimensions: 7.9 × 3.5 × 8.5" (200 × 90 × 215mm)

Power: 120VAC, 50Hz/60Hz

Weight: 5.7lbs (2.6kg)
