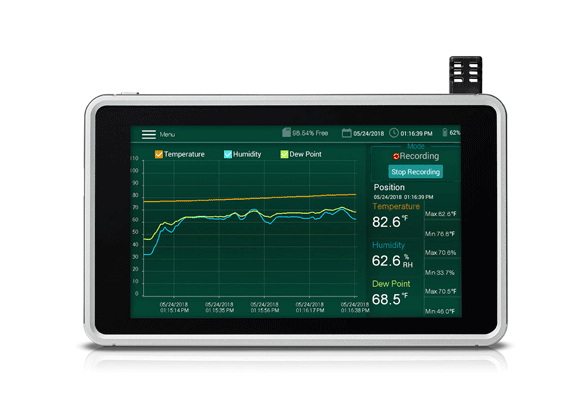

EXTECH RH550 带触摸屏的 湿度/温度图形记录仪

Relative Humidity:

Range: 10% to 95% RH

Max Resolution: 0.1% RH

Basic Accuracy: ±2.5% RH


Temperature (sensor directly attached to tablet)

Range: 14 to 104°F (-10 to 40°C)

Max Resolution: 0.1°

Basic Accuracy: ±0.9°F (±0.5°C)


Temperature (sensor attached to cable)

Range: -4 to 176°F (-20 to 80°C)

Max Resolution: 0.1°

Basic Accuracy: ±0.9°F (±0.5°C)


Dew point (calculated)

Range: -4 to 176°F (-20 to 80°C)

Max Resolution: 0.1°


Internal Memory Storage: 16 GB

Sample Rate: 1 sec to 24 hrs

Extension Cable: Connect up to 3 cables (RH550-C)

Dimensions

Tablet: 7.8 x 4.6 x 1" (198 x 118 x 25.7 mm)

Viewable Screen: 7" (178 mm)

RH550-P probe: 3.1 x 0.6 x 0.4" (79 °— 15.8 °— 10 mm)

RH550-C cable: ~6.5 ft (197 cm) cable length; ~6.9 ft (210 cm) cable length and two end connectors

Weight

Tablet: 12.9 oz (365 g)

Tablet with probe and cable: 15 oz (425 g)

RH550-P probe: 0.4 oz (11.3 g)

RH550-C cable: 1.7 oz (47 g)

Accessories:

RH550-C - Extension Cable for RH550-P

RH550-P - Humidity/Temperature Probe for RH550
