IR Resolution: 384 x 299 pixels
Thermal Sensitivity (NETD): <0.05°C@30°C
Field of View (FOV): 28°H x 21°V
Detector Type: Polysillicon-FPA, uncooled microbolometer, 17μm, Spectral Range 8-14μm
Frame Rate: 50Hz
Temperature Range: 20°C-60°C (68°F-140°F)
Temperature Stability: +/-0.5°C
AI Face Detection: Dual Light Detection (visible light and infrared thermal)
AI Body Temperature Algorithm: Calibrate alarm threshold in real time based on ambient temperature
Statistic Function: Automatic statistics of screening number
Shooting Mode: Automatic abnormal temperature snap shot or manual shooting
Alarm Function: Both color alarm and sound alarm
Color Pallet: Black-White/Iron/Rainbow
Image Format: Standard JPEG with temperature data
Interface Connection: USB
Software: WLIR Body Temperature Screening Software
Operating Temperature: 0°C-40°C (32°F-104°F)
Storage Temperature: -20°C-50°C (-4°F-122°F)
Enclosure Rating: IP40
Charging System: DC 12V Charger
Weight: +/- 560g
Dimensions (LxHxW): 97 x 145 x 93.5 mm
Tripod Mounting: UNC 1/4"-20

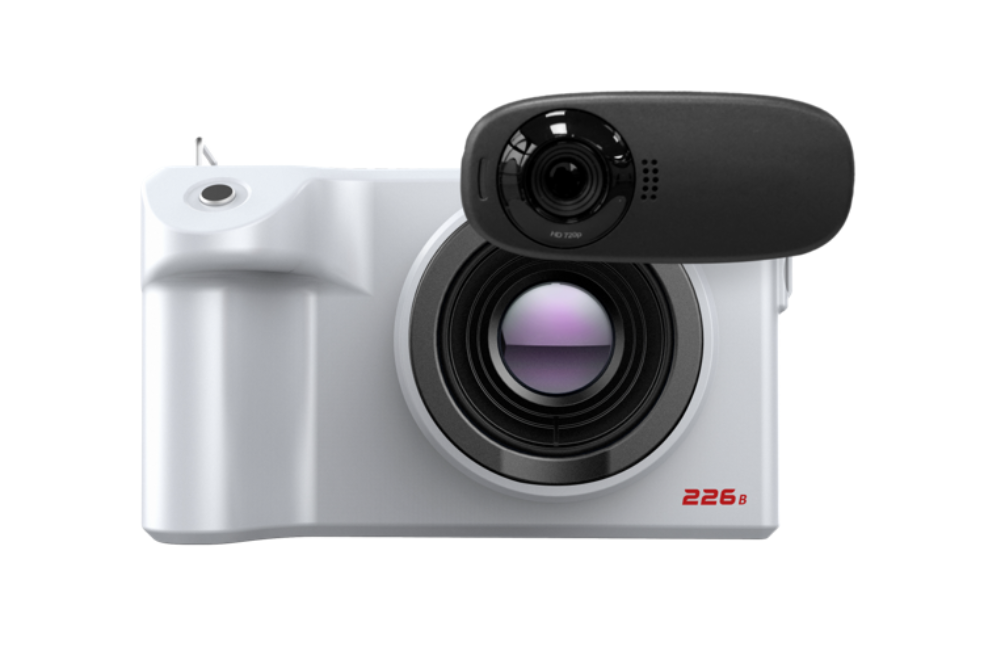

Standard Configuration: Fotric 2226B infrared imager, standard lens, DC adaptor, 3m USB, Calibration Certificate, Getting Started Manual (with warranty card)
