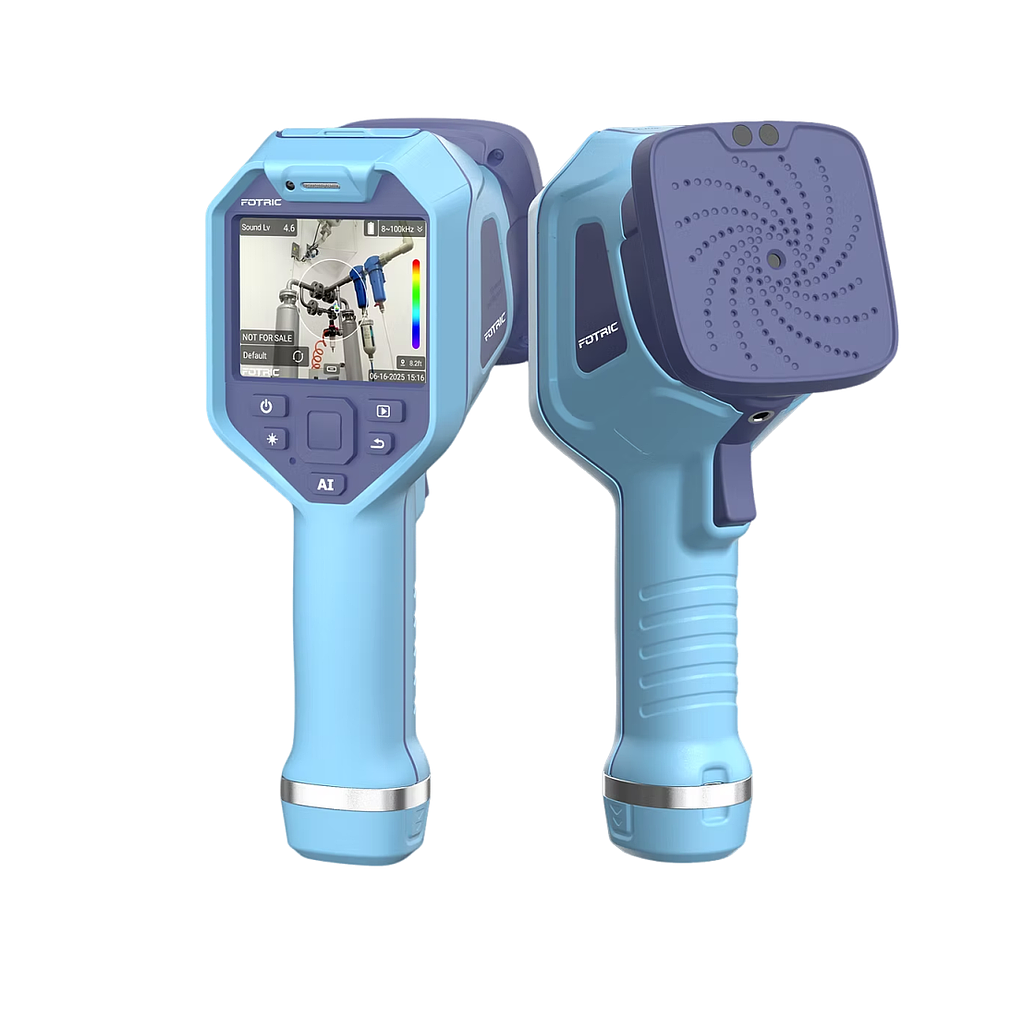

FOTRIC TD2 声学成像相机 (66° *52°; 2~100kHz)

Microphone Channel: 64 MEMS Digital Microphones

Acoustic Image Field of View  (FOV): 66° *52°

Operating Distance: 0.3~100m

Frequency Range: 2~100kHz

Detection Mode

Leakage mode: display leakage level on device

Analysis Software: AnalyzIR Professional Acoustic Analysis Software

Acoustic Image Focus: Masks surrounding areas, focuses only on the acoustic image of the focused area

On-device Analysis: The device is capable of directly analyzing acoustic images

Gray Scale Background: Display digital camera images in grayscale

Digital Camera: 13 Megapixels, Industrial-Grade Digital Camera

Display Screen: 3.5-inch, 640 x 480 pixels, IPS LCD touch display with Gorilla Glass explosion-proof cover

Size: 243mm*95mm*150mm

Weight: 770g

Storage Card: TF card, hot-swappable, maximum support 1TB

Battery Type: 3.6V, 5000mAh Rechargeable Lithium Battery, Field-Replaceable

Battery Operating Time: (Actual usage time depends on environmental and usage conditions)
