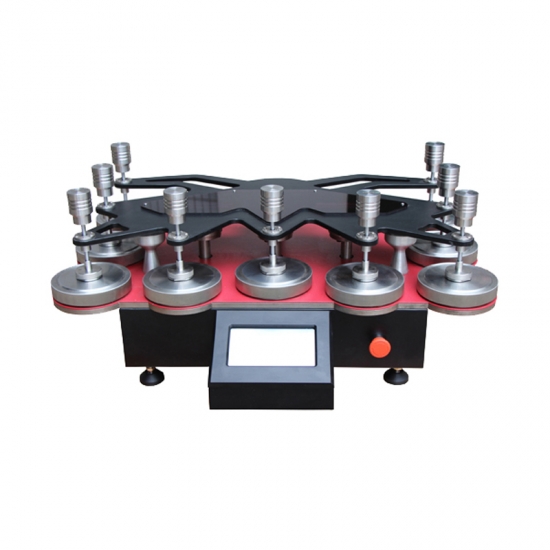

GESTER GT-C13C 纺织品耐磨性的标准试验机

Working Positions: 9

Control Mode: PLC Control and Touch Screen Display

Counter Range: 0~999999 times

Test Pressure

Abrasion Test:

Specimen holder: (198±2)g

Larger loading piece: (597±5)g

The sum mass:(795±7)g, for workwear, upholstery, bed linen and fabrics for technical use (nominal pressure of 12kpa)

Specimen holder: (198±2)g

Smaller loading piece:(397±5)g

The sum mass: (595±7)g, for apparel and household textiles, excluding upholstery and bed linen (nominal pressure of 9kpa)

Pilling Test:

Stainless steel loading piece: (155±1)g

Specimen holder: (260±1)g

The sum mass: (415±2)g

Holder Effective Diameter:

Abrasion Holder: φ(28.65 + 0.05)mm

Pilling Holder: φ(90± 0.10)mm

Rotational Speed: 50±2r/min

Pressing Weight: Mass:(2.5 ±0.5)

Diameter: φ(120±10)mm

Power Supply: AC220V 50/60HZ 500W

Dimensions (L×W×H): 850x650x350mm

Weight: 150kg

Details

Accesories:

Abrasion Weight and Holder: 1set

Pilling Weight and Holder: 1set

Standard Abradents Fabric: 2pcs for each head

Standard Backing Foam 38mm box: 60pcs

Standard Woven Felt Discs 140mm: 2pcs for each head

Standard Woven Felt Discs 90mm: 2pcs for each head

Sample Cutting Template (038mm, 090mm, 0140mm): 1pc each size

Pressing Weight: 1pc

Auxiliary Device for Specimen Mounting: 1pc

Steel Ball: 3pcs

Power Line: 1pc

Optional accesories:

EMPA Photographic Standards for Pilling Test (3x4 knitted)

EMPA Photographic Standards for Pilling Test (3 x 4 woven)

SM 50 Photographs for Pilling Test IWS+ ASTM Optional 4 Sets 1-5 (Plain, Twill A, Twill B, Blanket)

Standard Abradents Fabric

Standard Backing Foam φ38mm

Standard Woven Felt Discs φ140mm

Standard Woven Felt Discs φ90mm

Sample Cutter φ38mm

Sample Cutter 090mm

Sample Cutter φ140mm
