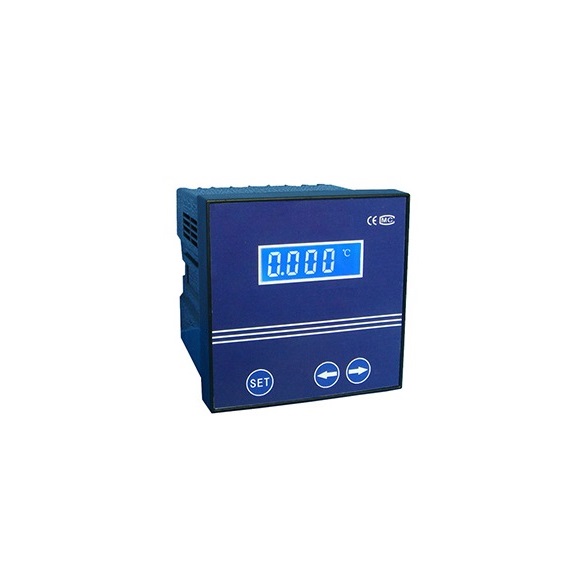

GFUVE FU8X6X DC 4-20Ma Output Temperature Digital Display Meter

Programmable: address, baud rate and other parameters.

Accuracy: 0.5 class

Display figures: 4 bits (4½ bits for DC)

Rated input: Temperature: PT100,J,K,T,E thermocouple.

Power supply: AC220V ± 20% or DC100-300V (Customization)

Power consumption: <3VA

Insulation strength: 2KV/Min. 2mA

Insulation resistance: ≥100MΩ

MTBF: ≥50000Hrs

Working Environment:

        Temperature: -25 ~ +55

        Humidity: ≤98% RH, without condensation

Real-time output: DC4-20mA, load capacity: ≤400Ω

Data output: RS485 port (Modbus-RTU protocol)

Switching input: Remote signal input (self power supply): AC or DC 220V

Switching output (Self-control): Normally open contact output: AC 250V / DC 30V, 5A
