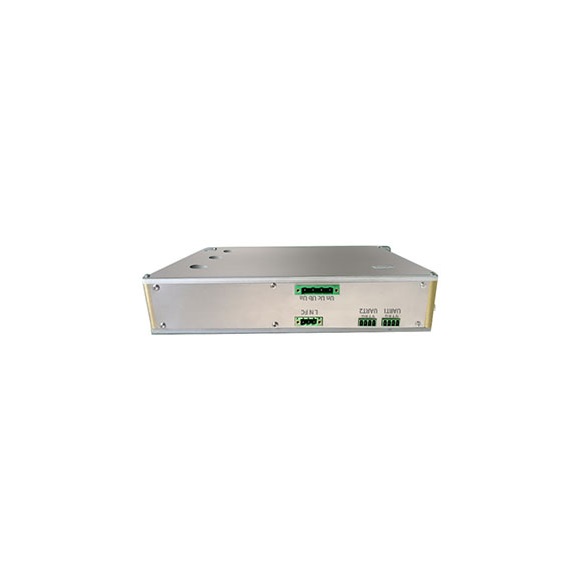

GFUVE GF333BM 模块式三相校准仪 (150A 600V)

ELECTRICAL PARAMETERS

Accuracy: 0.05%, 0.04%, 0.02%

Voltage supply: 220V±10% or 110V±10%, 50/60Hz

Voltage measurement

Range: 0V-600V

Error: ±0.02% (50V-600V), ±0.05% (5V-50V)

Display range: 0.000000V-600.0000V

Harmonic: 2nd-128st

Current measurement

Range: 1mA-60A; 1mA-120A; 1mA-150A; 1mA-200A

Error: ±0.02% (0.2A-240A), ±0.05% (10mA-0.2A)

Display range: 1.000000mA-240.0000A

Power measurement

Active power: ±0.02% (0.2A-240A)

        ±0.05% (0.01A-0.2A)

        ±0.1% (0.001A-0.01A)

Reactive power: ±0.05% (0.2A-240A), ±0.1% (0.001A-0.2A)

Apparent power: ±0.05% (0.2A-240A), ±0.1% (0.001A-0.2A)

Energy error

Active energy: ±0.02% (0.2A-240A)

        ±0.05% (0.01A-0.2A)

        ±0.1% (0.001A-0.01A)

Reactive energy: ±0.05% (0.2A-240A), ±0.1% (0.001A-0.2A)

Apparent energy: ±0.05% (0.2A-240A), ±0.1% (0.001A-0.2A)

Phase measurement

Range: 0°-360°

Error: ±0.005°

Display range: 0.0001°-359.99°

Frequency measurement

Range: 45-65Hz

Display range: 45.0000-65.0000

Accuracy: 0.001Hz

Power factor measurement

Range: -1.0 ~ 0 ~ +1.0

Resolution: 0.0001

Accuracy: 0.0005

Energy pulse:

High frequency output (CH): 25000Hz

Low frequency output (CL): 5000Hz

Pulse ratio: 1:1

Output level: 5V

Input level: 5V

Input frequency: Max. 1MHz

MECHANICAL PARAMETERS 　

Dimensions (W×D×H) (mm): 280x200x85

Weight (kg): 8

ENVIRONMENTAL CONDITIONS　

Ambient temperature: -10°C ~ 45°C

Influence of external fields: ≤0.05 %/mT

Relative humidity: 10% ~ 80%
