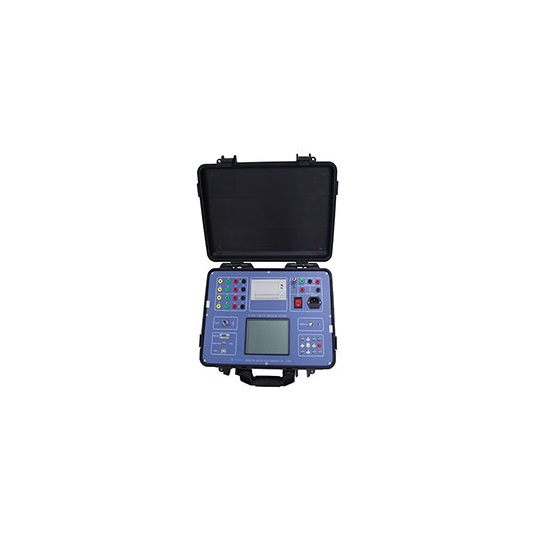

GFUVE T-209 Portable High Voltage Circuit Breaker Tester

ELECTRICAL PARAMETERS

Power supply: Single phase AC 220V±10% or 110V±10%, 50/60HzAC

Immunity: withstand the 550KV electrostatic environment

Test channels: 12 channels with 25Vthe current is 50mA

Transducer: one analog transducer

TIME:

        Recording time length: 09.9s

        Recording time length: ±0.l %reading ± 2 LSB

        Resolution: 0.1ms

Motion:

        Ranges: 01000mm

        Accuracy: ±1% reading ±1LSB

        Resolution: 0.1mm

Velocity:

        Ranges: 020.00m/s

        Accuracy: ±1%reading ±1LSB

        Resolution: 0.01m/s

DC POWER:

        Ranges: 15260V

        Max current: 20A

        Accuracy: ±1%reading ±1LSB

        Load change: ≤1%

TRIGGER:

        Voltage: 15260V

        Current: 0.1-20A

        Transducer: the transducer states changes

        Channels: channels states changed

Memory: SD card of 2GB, the maximum storage ability is 100 test results

Memory: ±1% reading ±1LSB

LCD: 5.7black and white LCD display (320 x 240 pixels)

Communication: RS232 and USB communication interface

Printer: internal installed 58mm wide thermal printe

Standard: DL/T846.3-2004, IEC61010-1, IEC61326-1

MECHANICAL PARAMETERS

Dimension (L×W×H) (mm): 380x262x120

Weight (kg): 6

ENVIRONMENTAL CONDITIONS

Operating temperature: -10°C ~ 50°C

Storage temperrature: -20°C ~ 70°C

Relative humidity: ≤95%RH]
