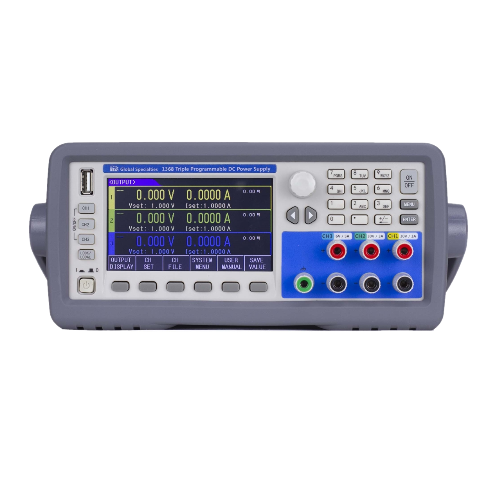

GLOBAL 1369 Programmable Triple Output Linear DC Power Supply (60V 3A/1~2CH; 6V 5A/3CH; 390W)

Rated Output (0˚C to 40˚C):

 + Voltage: CH1, CH2: 0 to 60 V / CH3: 0 to 6 V

 + Current: CH1, CH2: 0 to 3 A / CH3: 0 to 5 A

Power: 390 W

Load Regulation ± (% Output + Bias): ≤0.01 % + 3 mV / ≤0.01 % + 3 mA

Line Regulation ± (% Output + Bias): ≤0.01 % + 3 mV / ≤0.01 % + 3 mA

Programming Resolution: 1 mV / 0.1 mA

Read-back Value Resolution: 1 mV / 0.1 mA

Drift (0˚C to 40˚C) ± (% Output + Bias) per year:

 + Program: CH1, CH2: ≤0.03 % + 10 mV / (≤0.1% + 5 mA); CH3: (≤0.1% + 8 mA)

 + Readback: CH1, CH2: ≤0.03 % + 10 mV / (≤0.1% + 5 mA); CH3: (≤0.1% + 8 mA)

Ripple and Noise (20 Hz to 20 MHz):

 + Normal Voltage Mode: CH1, CH2, CH3: ≤4mVp-p

 + Normal Current Mode: CH1, CH2: ≤4mArms / CH3: ≤5mArms

Temperature Factor: ≤0.02 % + 5 mV / ≤0.1 % + 5 mA

Series / Parallel Accuracy: ≤0.02 % + 10 mV / ≤0.1 % + 30 mA

Timer: 0.1 to 99999.9 s

Memory: 4 groups of 40 data sets
